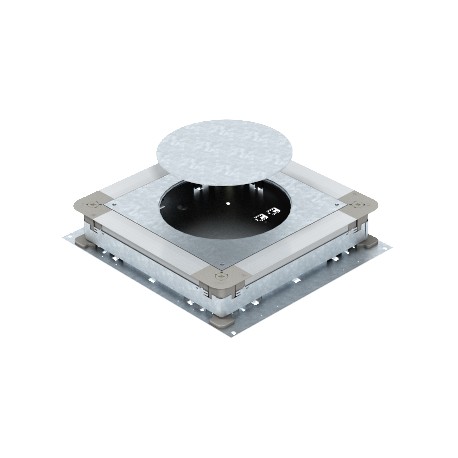

OBO BETTERMANN UGD 250-3R4 UGD 250-3R4 7410091 OBO BETTERMANN Underfloor box empty 250-3 for GESR4, 410x367x70, Strip-galvanised, DIN E.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UGD 250-3R4 7410091 OBO BETTERMANN Underfloor box empty 250-3 for GESR4, 410x367x70, Strip-galvanised, DIN E..

UGD 250-3R4

7410091

OBO BETTERMANN

1 Pcs.

Underfloor box empty 250-3 for GESR4, 410x367x70, Strip-galvanised, DIN EN 10147, Steel, St Box for conj.portamec. UGD 250-3R4,250-3 for GESR4 410x367x70 Steel, St,strip galvanized, DIN EN 10346 UGD250-3 for round mechanism assemblies, for pavement height 70-125 mm. Underfloor sockets for underfloor channels with sheet steel side walls. For mounting units of the selected nominal size. It can be continuously leveled at the pavement height (fast levelling is possible) and the pavement can be mounted flush with the pull-out edge. With the possibility of acoustic decoupling after floor assembly and application of heavy loads with additional accessories.

Automation > Service box for underfloor installation
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An empty round-format underfloor box provides a durable housing enclosure designed to house circular service outlets and distribute concealed electrical cabling within screed flooring layers. Electrical contractors depend on these galvanized steel units to maintain reliable subfloor connectivity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Nominal dimension (EF000132): 250 mm
  • Min. height finishing layer (EF007935): 70 mm
  • Levelling range (EF005136): 70 mm
  • Suitable for subfloor duct countersunk (closed) (EF005792): Yes
  • Suitable for subfloor duct overhead closed (EF006408): No
  • Duct height (EF005459): 28 mm
  • Duct width (EF007884): 190 mm
  • Built-in opening for floor column (EF004641): No
  • Built-in opening for built-in unit (EF007738): Round
  • Material side wall (EF008133): Steel
  • Suitable for placing of sealing (EF004594): Yes
  • Decoupling possibility cover from base unit (EF007745): Yes
  • Bottom plate (EF004544): Yes

More info

▲
Underfloor box for direct installation of device installation units with mounting lid and lid blanking plate for screed-covered underfloor installation systems.
