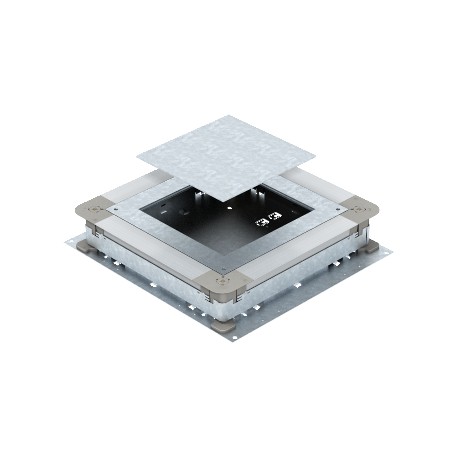

OBO BETTERMANN UGD 250-3 9 UGD 250-3 9 7410087 OBO BETTERMANN Underfloor box empty 250-3 for GES9, 410x367x70, Strip-galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UGD 250-3 9 7410087 OBO BETTERMANN Underfloor box empty 250-3 for GES9, 410x367x70, Strip-galvanised, DIN EN..

UGD 250-3 9

7410087

OBO BETTERMANN

1 Pcs.

Underfloor box empty 250-3 for GES9, 410x367x70, Strip-galvanised, DIN EN 10147, Steel, St Box for conj.portamec. UGD 250-3 9,250-3 for GES9 410x367x70 Steel, St,strip galvanized, DIN EN 10346

Automation > Service box for underfloor installation
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An empty underfloor box functions as a foundational enclosure for floor service outlets, enabling secure distribution of power and data lines beneath concrete or screed floors. This Obo Bettermann UGD 250-3 9 unit integrates smoothly with closed subfloor duct networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Nominal dimension (EF000132): 250 mm
  • Min. height finishing layer (EF007935): 70 mm
  • Levelling range (EF005136): 70 mm
  • Suitable for subfloor duct countersunk (closed) (EF005792): Yes
  • Suitable for subfloor duct overhead closed (EF006408): No
  • Duct height (EF005459): 28 mm
  • Duct width (EF007884): 190 mm
  • Built-in opening for floor column (EF004641): No
  • Built-in opening for built-in unit (EF007738): Square
  • Material side wall (EF008133): Steel
  • Suitable for placing of sealing (EF004594): Yes
  • Decoupling possibility cover from base unit (EF007745): Yes
  • Bottom plate (EF004544): Yes

More info

▲
Side walls are prepared for duct widths of 190 and 250 mm
