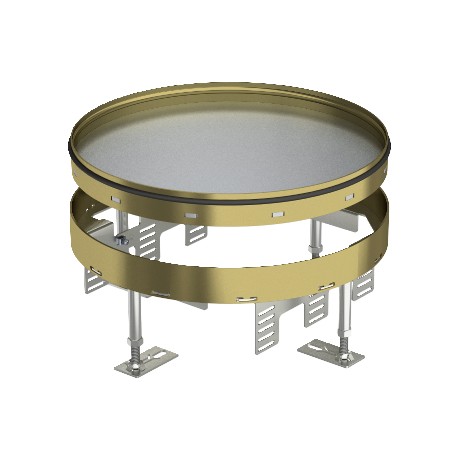

RKR2 9M 25 7409124 OBO BETTERMANN Round cassette blank, ø 305mm, Brass, CuZn
RKR2 9M 25
7409124
OBO BETTERMANN
1 Pcs.
Round cassette blank, ø 305mm, Brass, CuZn
RKR2 9M 25 round cover and frame set, blind Ø305mm Brass, CuZn,
Height-adjustable cassette for inspection opening, RKR, brass. Height-adjustable "blank" cassette for the creation of an inspection opening of nominal size R9 in dry or wet-cleaned floors for indoor use. Only suitable for smooth floor coverings.Height-adjustable cassette as a blind cassette, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45 devices.
Automation > Levelling cassette for duct mounting, raised and underfloor installation
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | No cable outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 14,7335 kg CO2e / 1 Piece |
| Decouplable | no |
| Device support to accept mounting boxes | no |
| Dimension | Ø305mm |
| Floor care | Wet |
| Floor covering thickness | 25 mm |
| Floor height, max. | 155 mm |
| Floor height, min. | 105 mm |
| Heavy-duty version | no |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 105 mm |
| Installation depth | 105 mm |
| Installation diameter | 305 |
| Installation system type | UT4 |
|---|---|
| Length | 304 mm |
| Material | Brass |
| Nominal size for device installation units | R9 |
| Number of mounting boxes | 3 |
| Protection rating (IP) when unused | IP44 |
| Protection rating (IP) when used | IP00 |
| Protection rating IK code | IK10 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Version for | Round |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 304 mm |
| Feature Name | Feature Value |
|---|---|
| Min. built-in depth (EF005027) | 105 mm |
| Levelling height (EF007999) | 105 mm |
| Floor maintenance (EF004546) | Wet |
| Model (EF000010) | Round |
| Material (EF002169) | Brass |
| Number of conduit outlets (EF004424) | 0 |
| Chassis part for device cups (EF004750) | No |
| Built-in diameter (EF000943) | 305 mm |
| Number of appliances to build in (EF000219) | 0 |
| Number of device cups (EF000436) | 3 |
