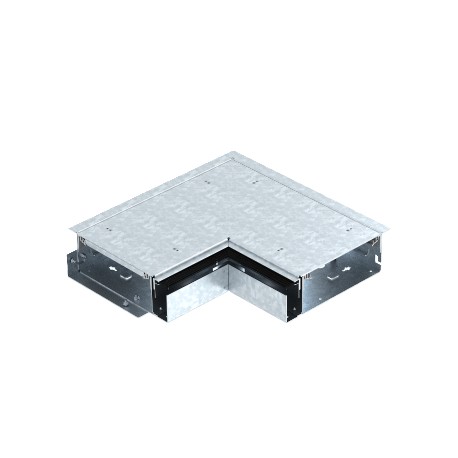

OKB AE 25085 ON 7403831 OBO BETTERMANN External corner with brush bar, 424x424x87, Steel, St
OKB AE 25085 ON
7403831
OBO BETTERMANN
1 Pcs.
Automation > Junction unit for underfloor installation duct flush floor open
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
External corner with brush bar manufactured by Obo Bettermann, model OKB AE 25085 ON, directs underfloor trunking around 90-degree building corners while providing a brushed cable exit. This steel assembly protects conductors from abrasion during directional transitions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 41,0954 kg CO2e / 1 Piece
- Cover fastening, locking: no
- Decouplable: yes
- Dimension: 424x424x87
- Dimension h: 85 mm
- Floor care: Dry
- Floor plate: yes
- Function: External corner
- Height: 93 mm
- Installation opening for on-floor tank: no
- Length: 422 mm
- Material: Steel
- Minimum screed height: 93
- Mounting opening cover: no
- Removable cover: yes
- Seal installation option: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 41,0954 kg CO2e / 1 Piece |
|---|---|
| Cover fastening, locking | no |
| Decouplable | yes |
| Dimension | 424x424x87 |
| Dimension h | 85 mm |
| Floor care | Dry |
| Floor plate | yes |
| Function | External corner |
| Height | 93 mm |
| Installation opening for on-floor tank | no |
| Length | 422 mm |
| Material | Steel |
| Minimum screed height | 93 |
| Mounting opening cover | no |
| Removable cover | yes |
|---|---|
| Seal installation option | no |
| Separating retainer fastening | Plug |
| Suitable for expansion joint | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Surface | Strip galvanized |
| Width | 250 mm |
| With connection opening | no |
| With equipotential bonding | no |
| With overhang | yes |
| With separating retainer | no |
