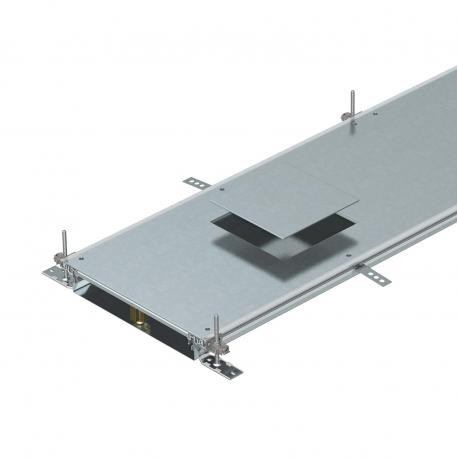

OBO BETTERMANN OKA-W4006050D4 OKA-W4006050D4 7424602 OBO BETTERMANN Flushfloor trunking unit for service unit GES15, 2400x400x60, Strip-ga..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

OKA-W4006050D4 7424602 OBO BETTERMANN Flushfloor trunking unit for service unit GES15, 2400x400x60, Strip-ga..

Name: OKA-W4006050D4 7424602 OBO BETTERMANN Flushfloor trunking unit for service unit GES15, 2400x400x60, Strip-ga..
Brand: OBO BETTERMANN
SKU: 7424602

Reference: OKA-W4006050D4

Code: 7424602

Manufacturer: OBO BETTERMANN

Units per package: 2 Pcs.

Description:

Flushfloor trunking unit for service unit GES15, 2400x400x60, Strip-galvanised, DIN EN 10147, Steel, St OKA-W4006050D4 pavement flush channel, for conj. portam. GES4 2400x400x60 Steel, St, strip galvanized, DIN EN 10346 Trunking unit for GES4, height 60−110 mm. Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of flush-mount units of nominal size 4, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid with blank covered mounting opening. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.

Categories:
Automation > Underfloor installation duct flush floor open
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number OKA-W4006050D4 is a flushfloor trunking unit for service unit GES15 designed to house power distribution hardware and connection points directly beneath floor surfaces. This unit ensures protected and organized cable management in commercial facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 70,4771 kg CO2e / 1 Meter
Cover fastening, locking: no
Cover material thickness: 4
Covers: 3
Decouplable: no
Dimension: 2400x400x60
Duct height, min.: 60 mm
Floor plate: yes
Height-adjustment range, max.: 110 mm
Height-adjustment range, min.: 60 mm
Installation opening for on-floor tank: no
Length: 2400 mm
Material: Steel
Minimum screed height: 60
Mounting opening: For service outlet
Mounting opening: Square

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	70,4771 kg CO2e / 1 Meter
Cover fastening, locking	no
Cover material thickness	4
Covers	3
Decouplable	no
Dimension	2400x400x60
Duct height, min.	60 mm
Floor plate	yes
Height-adjustment range, max.	110 mm
Height-adjustment range, min.	60 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel
Minimum screed height	60
Mounting opening	For service outlet
Mounting opening	Square

Mounting opening cover	yes
Nominal size for device installation units	4
Number of compartments	3 St.
Number of insertable partitions	2
Number of planned flush-mount units	3
Removable cover	yes
Seal installation option	yes
Separating retainer fastening	Plug
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	110 mm
Width	400 mm
With connection opening	yes
With equipotential bonding	no
With overhang	yes
With separating retainer	no
