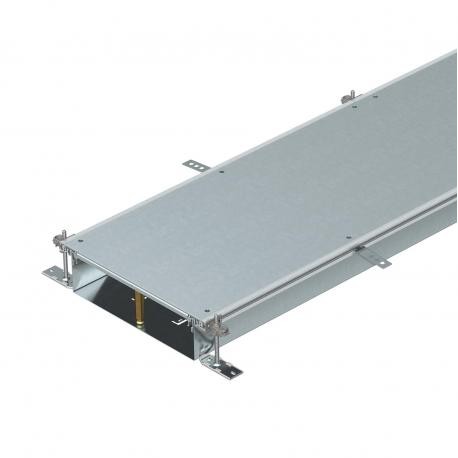

OKA-W40010050 7424444 OBO BETTERMANN Flushfloor trunking unit blank, 2400x400x100, Strip-galvanised, DIN EN ..
OKA-W40010050
7424444
OBO BETTERMANN
2 Pcs.
Flushfloor trunking unit blank, 2400x400x100, Strip-galvanised, DIN EN 10147, Steel, St
OKA-W40010050 flush pavement channel, blind 2400x400x100 Steel, St, strip galvanized, DIN EN 10346
Trunking unit, blank, height 100−150 mm. Ready-to-mount trunking unit with three blanking lids for cable laying, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed on for delivery.
Automation > Underfloor installation duct flush floor open
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 75,6137 kg CO2e / 1 Meter |
|---|---|
| Cover fastening, locking | no |
| Cover material thickness | 4 |
| Covers | 3 |
| Decouplable | no |
| Dimension | 2400x400x100 |
| Duct height, min. | 100 mm |
| Floor plate | yes |
| Height-adjustment range, max. | 150 mm |
| Height-adjustment range, min. | 100 mm |
| Installation opening for on-floor tank | no |
| Length | 2400 mm |
| Material | Steel |
| Minimum screed height | 100 |
| Mounting opening | Without |
| Mounting opening cover | no |
| Number of compartments | 3 St. |
|---|---|
| Number of insertable partitions | 2 |
| Number of planned flush-mount units | 3 |
| Removable cover | yes |
| Seal installation option | yes |
| Separating retainer fastening | Lock |
| Suitable for expansion joint | no |
| Surface | Strip galvanized |
| Trunking height, max. | 150 mm |
| Usable cross-section | 24100 mm² |
| Width | 400 mm |
| With connection opening | no |
| With equipotential bonding | no |
| With overhang | yes |
| With separating retainer | no |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 400 mm |
| Length (EF001438) | 2400 mm |
| Levelling range (EF005136) | 100 mm |
| Mounting opening (EF005090) | None |
| Cover mounting opening (EF004340) | No |
| Number of provided built-in units (EF007654) | 3 |
| With partition panel (EF007973) | No |
| Max. number of compartments (EF007925) | 3 |
| Partition fixing (EF008088) | Snap |
| Bottom duct (EF004547) | Yes |
| Material side wall/bottom duct (EF005415) | Steel |
| Surface side wall/bottom duct (EF008008) | Galvanised |
| Decoupling possibility base from main body (EF007746) | No |
