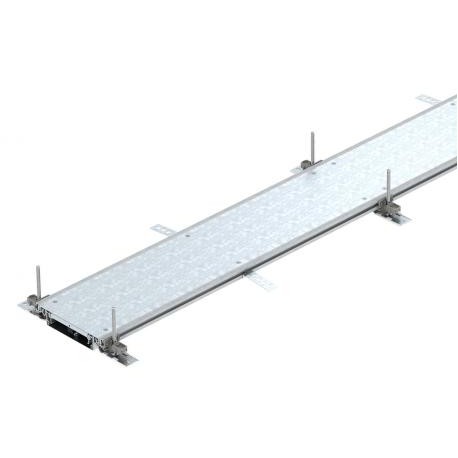

OBO BETTERMANN OKA-W2004030 OKA-W2004030 7424400 OBO BETTERMANN Flushfloor trunking unit blank, 2400x200x40, Strip-galvanised, DIN EN 10..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

OKA-W2004030 7424400 OBO BETTERMANN Flushfloor trunking unit blank, 2400x200x40, Strip-galvanised, DIN EN 10..

Name: OKA-W2004030 7424400 OBO BETTERMANN Flushfloor trunking unit blank, 2400x200x40, Strip-galvanised, DIN EN 10..
Brand: OBO BETTERMANN
SKU: 7424400

Reference: OKA-W2004030

Code: 7424400

Manufacturer: OBO BETTERMANN

Units per package: 2 Pcs.

Description:

Flushfloor trunking unit blank, 2400x200x40, Strip-galvanised, DIN EN 10147, Steel, St OKA-W2004030 pavement flush channel, blind 2400x200x40 Steel, St, strip galvanized, DIN EN 10346 Trunking unit, blank, height 40−70 mm. Ready-to-mount trunking unit with three blanking lids for cable laying, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed on for delivery.

Categories:
Automation > Underfloor installation duct flush floor open
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number OKA-W2004030 is a flushfloor trunking unit blank designed to route electrical cables and communication lines safely beneath raised or screed flooring in modern industrial settings. These structural wireways organize utility infrastructure across large floor plans efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 46,9561 kg CO2e / 1 Meter
Cover fastening, locking: no
Cover material thickness: 4
Covers: 3
Decouplable: no
Dimension: 2400x200x40
Duct height, min.: 40 mm
Floor plate: yes
Height-adjustment range, max.: 70 mm
Height-adjustment range, min.: 40 mm
Installation opening for on-floor tank: no
Length: 2400 mm
Material: Steel
Minimum screed height: 40
Mounting opening: Without
Mounting opening cover: no

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	46,9561 kg CO2e / 1 Meter
Cover fastening, locking	no
Cover material thickness	4
Covers	3
Decouplable	no
Dimension	2400x200x40
Duct height, min.	40 mm
Floor plate	yes
Height-adjustment range, max.	70 mm
Height-adjustment range, min.	40 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel
Minimum screed height	40
Mounting opening	Without
Mounting opening cover	no

Number of compartments	2 St.
Number of insertable partitions	1
Number of planned flush-mount units	3
Removable cover	yes
Seal installation option	yes
Separating retainer fastening	Lock
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	70 mm
Usable cross-section	2600 mm²
Width	200 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no
