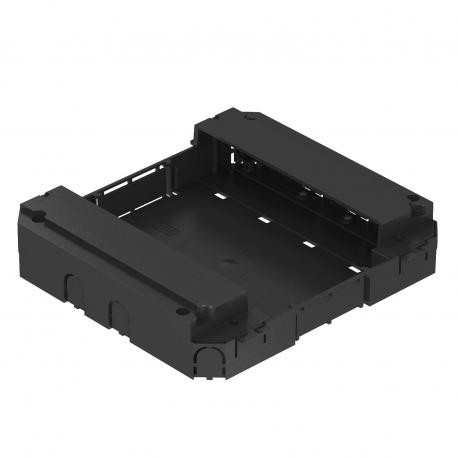

OBO BETTERMANN MT45V 0 MT45V 0 7408698 OBO BETTERMANN Module support for system height 55 mm, Graphite black, 9011, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MT45V 0 7408698 OBO BETTERMANN Module support for system height 55 mm, Graphite black, 9011, Polyamide, PA

MT45V 0

7408698

OBO BETTERMANN

1 Pcs.

Module support for system height 55 mm, Graphite black, 9011, Polyamide, PA Module support for vertical installation Modul 45® devices. Module support for the installation of up to eight Modul 45 devices in an empty standard device insert or in an empty height-adjustable cassette of the nominal sizes 9 or R9. The module support is snapped into the locking ladders.MT45V installation frames for the installation of Modul 45 devices and the MPMT45 mounting plates for data sockets can be ordered separately. The holes on the side wall for the pipe entry have a diameter of 21 mm.

Automation > Mounting box
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

MT45V 0 7408698 OBO BETTERMANN Module support for system height 55 mm, Graphite black, 9011, Polyamide, PA hardware provides secure housing for data, voice, and multimedia inserts within underfloor service units and floor boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory mounting type: Lock
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,0923 kg CO2e / 1 Piece
  • Colour: Graphite black
  • RAL 9011:
  • Floor plate: no
  • Material: Polyamide
  • Seal installation option: no
  • Strain relief option: yes
  • Suitable for cavity floor installation: yes
  • Suitable for raised floor installation: yes
  • Suitable for screed-covered underfloor ducts: yes
  • Suitable for screed-flush closed underfloor ducts: yes
  • Suitable for underfloor ducts: yes

More info

▲
Accessory mounting typeLock
CO2 Footprint (GWP) Cradle-to-Gate1,0923 kg CO2e / 1 Piece
ColourGraphite black; RAL 9011
Floor plateno
MaterialPolyamide
Seal installation optionno
Strain relief optionyes
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsyes
Suitable for underfloor ductsyes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
