View larger
Images are for illustrative purposes only. Please refer to data sheet for details

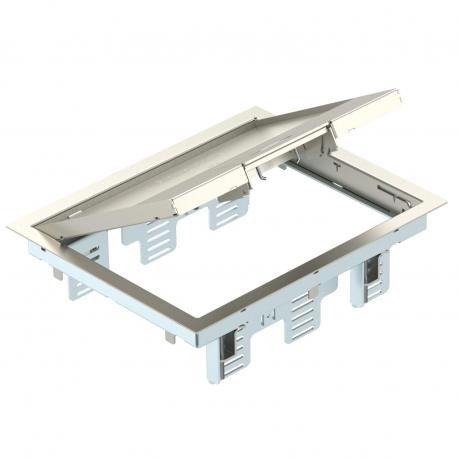

GES6M-2 10U 7405299 OBO BETTERMANN Service outlet for universal mounting, Stainless steel, grade 304, VA, 1...
GES6M-2 10U
7405299
OBO BETTERMANN
1 Pcs.
Service outlet for universal mounting, Stainless steel, grade 304, VA, 1.4301
GES6M-2 service outlet with handle clamp. Service outlet with handle clamp for up to 9 individual Modul 45 devices in 3 UT3 universal supports, use in trunking systems and system floors for indoor use.Locking ladder made of galvanised sheet steel. The floor covering thickness is set to 5 mm, adjustable to 10 mm if necessary. Service outlet with handle clamp, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Automation > Installation box for underfloor-installation
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Cable outlet version | Swivellable cord outlet |
|---|---|
| Clamping range D, max. | 61 mm |
| Clamping range D, min. | 3 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 18,9807 kg CO2e / 1 Piece |
| Device support to accept mounting boxes | yes |
| Dimension | 274x221x70 |
| Floor care | Dry |
| Floor covering protection frame | yes |
| Floor covering thickness | 5 mm |
| Floor covering thickness max. | 10 mm |
| Floor height, min. | 78 mm |
| Frame version | Carpet protection frame |
| Heavy-duty version | no |
| Installation depth | 78 mm |
| Installation system type | MT3 / GB2 |
| Length | 274 mm |
| Length of external dimensions | 274 mm |
| Length of installation dimensions | 253 mm |
| Material | Stainless steel 1.4301 |
| Nominal size for device installation units | 6 |
| Number of installable devices | 9 |
|---|---|
| Number of mounting boxes | 3 |
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Seal installation option | no |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for underfloor ducts | yes |
| Suitable for wet care | no |
| Version for | Rectangular |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Wide external dimensions | 220,5 mm |
| Wide installation dimensions | 200 mm |
| Width | 220,5 mm |
| With floor covering recess | yes |
