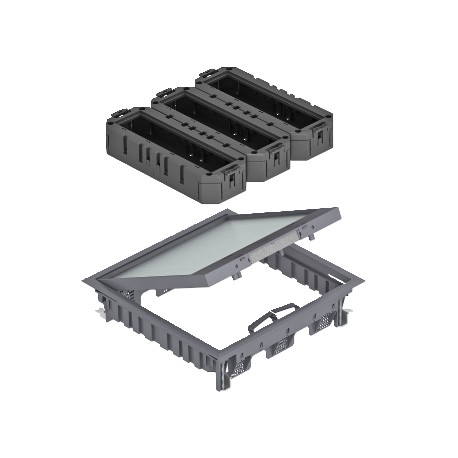

OBO BETTERMANN GES9-3 KU 7011 GES9-2 KU 7011 7429592 OBO BETTERMANN Set portamec., For universal mounting, gray iron, 7011, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GES9-2 KU 7011 7429592 OBO BETTERMANN Set portamec., For universal mounting, gray iron, 7011, Polyamide, PA

GES9-3 KU 7011

7429592

OBO BETTERMANN

1 Pcs.

Set portamec., For universal mounting, gray iron, 7011, Polyamide, PA GES9-3 service outlet with UT4 45. Service outlet with all necessary system accessories for direct installation in screed floors for indoor use.The scope of delivery contains a service outlet of nominal size 9 with universal fastening bracket and three universal supports, each for 4 Modul 45® devices. Service outlet with carpet protection frame, hinged lid and cord outlet made of polyamide in the colour RAL 7011. 10 mm floor covering recess in the hinged lid (changeable to 3, 5 or 8 mm).

Automation > Installation box for underfloor-installation
KITS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

GES9-2 KU 7011 7429592 Obo Bettermann set portamec., For universal mounting, gray iron, 7011, Polyamide, PA serves as a comprehensive service outlet kit used to house and protect modular wiring devices embedded in flooring structures. Its durable polyamide housing ensures reliable daily performance in commercial spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cable outlet version: Swivellable cord outlet
  • Clamping range D, max.: 76 mm
  • Clamping range D, min.: 8 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 7,8669 kg CO2e / 1 Piece
  • Colour: Iron grey
  • RAL: 7011
  • Floor covering thickness: 5 mm
  • Floor covering thickness max.: 10 mm
  • Length of installation dimensions: 244 mm
  • Material: Polyamide
  • Opening mechanism: Locking slider
  • Protection rating (IP) when unused: IP40
  • Protection rating (IP) when used: IP20
  • Protection rating IK code: IK08
  • Wide installation dimensions: 244 mm

More info

▲
Cable outlet versionSwivellable cord outlet
Clamping range D, max.76 mm
Clamping range D, min.8 mm
CO2 Footprint (GWP) Cradle-to-Gate7,8669 kg CO2e / 1 Piece
ColourIron grey; RAL 7011
Floor covering thickness5 mm
Floor covering thickness max.10 mm
Length of installation dimensions244 mm
MaterialPolyamide
Opening mechanismLocking slider
Protection rating (IP) when unusedIP40
Protection rating (IP) when usedIP20
Protection rating IK codeIK08
Wide installation dimensions244 mm
