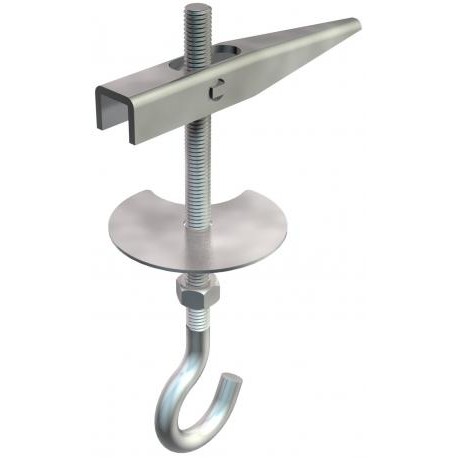

454 M6x100 G 3482030 OBO BETTERMANN Tilting anchors with ceiling hook, M6x100mm, Electrogalvanised, DIN 5096..
454 M6x100 G
3482030
OBO BETTERMANN
25 Pcs.
Tilting anchors with ceiling hook, M6x100mm, Electrogalvanised, DIN 50961, Steel, St
Tilting anchor. One washer and one hexagonal nut, with ceiling hook.Note: Reckon with 5x safety for luminaire suspensions.
Automation > Toggle fixing
Tilting
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Part number 454 M6x100 G from Obo Bettermann is a robust tilting anchor featuring a ceiling hook for suspended installations. It offers strong load-bearing stability when anchored behind hollow panels and overhead structures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breaking load: 0,7 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1446 kg CO2e / 1 Piece
- Dimension: M6x100mm
- Dimension L: 100 mm
- Drill hole: 16 mm
- Drill hole diameter, min.: 16 mm
- hook diameter: 16 mm
- Length: 100 mm
- Material: Steel
- Surface: Electrogalvanized
- Thread: M6
- Thread type: Metric
- Version for: With ceiling hook
- With washer: yes
More info
▲| Breaking load | 0,7 kN |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1446 kg CO2e / 1 Piece |
| Dimension | M6x100mm |
| Dimension L | 100 mm |
| Drill hole | 16 mm |
| Drill hole diameter, min. | 16 mm |
| hook diameter | 16 mm |
| Length | 100 mm |
|---|---|
| Material | Steel |
| Surface | Electrogalvanized |
| Thread | M6 |
| Thread type | Metric |
| Version for | With ceiling hook |
| With washer | yes |
