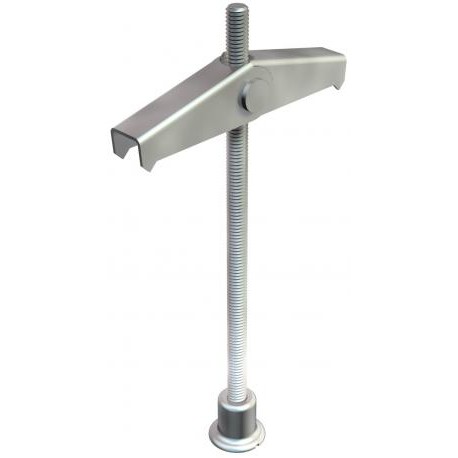

451 M4x95 G 3481662 OBO BETTERMANN Sprung hinged anchor , M4x95mm, Electrogalvanised, DIN 50961, Steel, St
451 M4x95 G
3481662
OBO BETTERMANN
50 Pcs.
Sprung hinged anchor , M4x95mm, Electrogalvanised, DIN 50961, Steel, St
Sprung hinged anchor. With threaded rod and slotted brass nut, steel axle.
Automation > Toggle fixing
Tilting
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breaking load | 0,2 kN |
|---|---|
| Dimension | M4x95mm |
| Drill hole | 14 mm |
| Drill hole diameter, min. | 14 mm |
| Length | 90 mm |
| Material | Steel |
| Minimum cavity depth | 35 mm |
|---|---|
| Surface | Electrogalvanized |
| Thread | M4 |
| Thread type | Metric |
| Version for | With threaded shaft |
| With washer | no |
