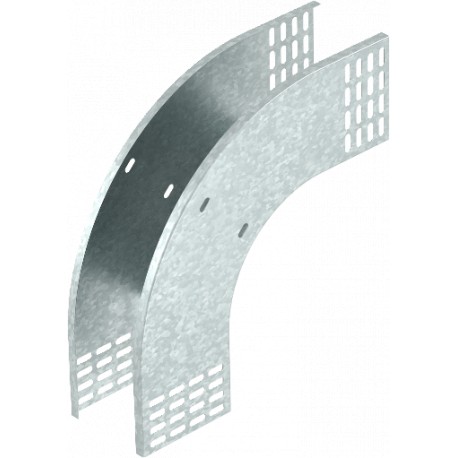

RBV 120 F FS 7007354 OBO BETTERMANN 90° vertical bend falling, 110x200, Strip-galvanised, DIN EN 10147, Stee..
RBV 120 F FS
7007354
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
TBS Type 2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Applied in commercial electrical installations, an Obo Bettermann RBV 120 F FS 90° vertical bend falling component guides cable containment systems seamlessly around downward corners. Tray components protect and organize sensitive wiring layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, falling
- CO2 Footprint (GWP) Cradle-to-Gate: 4,594 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 110x200
- Dimension B: 200 mm
- Height: 4 in
- Height: 110 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,594 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x200 |
| Dimension B | 200 mm |
| Height | 4 in |
| Height | 110 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 200 mm |
| Width | 8 in |
