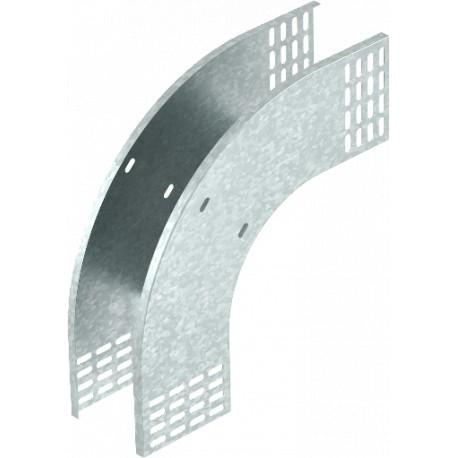

RBV 120 F FT 7007470 OBO BETTERMANN 90° vertical bend falling, 110x200, Hot-dip galvanised, DIN EN ISO 1461,..
RBV 120 F FT
7007470
OBO BETTERMANN
1 Pcs.
90° vertical bend falling, 110x200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
90° vertical bend, falling 110 FT. 90° vertical bend, falling, for all cable tray types of 110 mm side height.
Cables > Bend for cable tray
TBS permanent Protections
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,2051 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x200 |
| Dimension B | 200 mm |
| Height | 4 in |
| Height | 110 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 200 mm |
| Width | 8 in |
