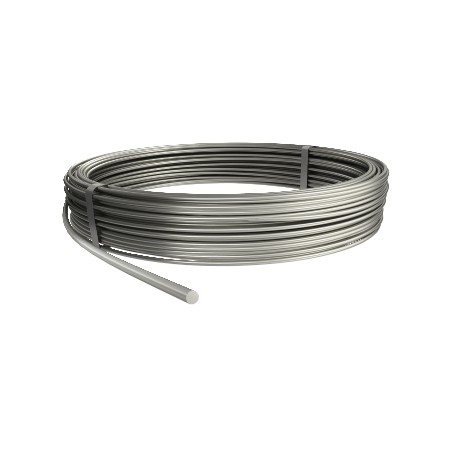

RD 8-V4A 5021644 OBO BETTERMANN Round conductors 50 kg ring, 8mm,
RD 8-V4A
5021644
OBO BETTERMANN
125 Pcs.
Automation > Round conductor/wire for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann RD 8-V4A round conductor is manufactured from high-grade stainless steel to ensure longevity in severe atmospheric conditions. Such conductors form the backbone of reliable lightning and grounding meshes on industrial structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cross-section: 50 mm²
- Diameter: 8 mm
- Dimension: 8mm
- Dimension D: 8 mm
- High voltage-resistant, insulated version: no
- Length tolerance ±: 5 %
- Material: Stainless steel 1.4571/1.4404
- Material jacket: Without
- Material property: Miscellaneous
- Nomal ring (approx. m): 125
- Normal ring (ca. kg): 50
- Number of individual wires: 1
More info
▲| Cross-section | 50 mm² |
|---|---|
| Diameter | 8 mm |
| Dimension | 8mm |
| Dimension D | 8 mm |
| High voltage-resistant, insulated version | no |
| Length tolerance ± | 5 % |
| Material | Stainless steel 1.4571/1.4404 |
|---|---|
| Material jacket | Without |
| Material property | Miscellaneous |
| Nomal ring (approx. m) | 125 |
| Normal ring (ca. kg) | 50 |
| Number of individual wires | 1 |
