OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5021081
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

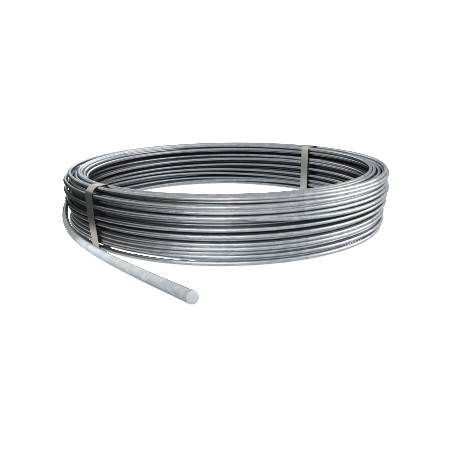

RD 8-FT 5021081 OBO BETTERMANN Round conductors 125 m ring, 8mm, Hot-dip galvanised, DIN EN ISO 1461, Steel,..
RD 8-FT
5021081
OBO BETTERMANN
125 Pcs.
Round conductors 125 m ring, 8mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Round conductor RD 8-FT 125 m roll 8mm Steel, St Hot dip galvanized, DIN EN ISO 1461
Galvanized steel round conductor. • Can be used as a bypass according to DIN EN 62561-2 (VDE 0185-561-2)• Meets the requirements according to VDE 0185-305 (IEC 62305)• Zinc surface: ≥ 350 g/m² (approx. 50 μm average)
Automation > Round conductor/wire for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
• According to DIN en 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10 can also be used in the earth
• Zinc coating: 350 g/m2 (approx. 50 µm)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10 can also be used in the earth
• Zinc coating: 350 g/m2 (approx. 50 µm)
| Feature Name | Feature Value |
|---|---|
| Diameter conductor (EF001621) | 8 mm |
| Conductor cross section (EF000085) | 50 mm² |
| Outer diameter incl. sheat/cover (EF015613) | 8 mm |
| Conductor category (EF001632) | Class 1 = solid |
| Number of strands (EF003523) | 1 |
| Conductor material (EF001622) | Steel |
| Characteristic conductor material (EF004255) | Other |
| Surface protection (EF000139) | Hot dip galvanized |
| Sheathing material (EF001745) | None |
| Sheathing material halogen free (EF016703) | No |
| High-voltage-proof insulated model (EF007857) | No |
| Weight (EF000167) | 40 |
