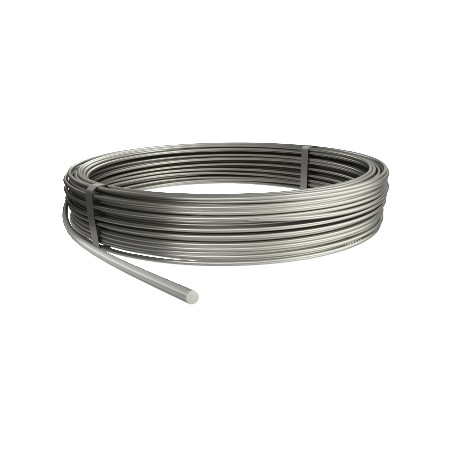

OBO BETTERMANN RD 10-V4A RD 10-V4A 5021647 OBO BETTERMANN Round conductors 50 kg ring, 10mm, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RD 10-V4A 5021647 OBO BETTERMANN Round conductors 50 kg ring, 10mm,

RD 10-V4A

5021647

OBO BETTERMANN

80 Pcs.

Round conductors 50 kg ring, 10mm, RD 10-V4A round conductor 50 kg roll 10mm Stainless steel 1.4571/1.4404, V4A, 1.4571/1.4404 Round conductor, stainless steel A4. • Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)• Corresponds to the requirements of VDE 0185-305 (IEC 62305)• RD 10-V4A for applications in the earth• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth

Automation > Round conductor/wire for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann RD 10-V4A round conductor provides a robust, corrosion-proof link within complex external lightning protection and earthing networks. Premium stainless steel wire prevents degradation in chemically active or marine environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cross-section: 78 mm²
  • Diameter: 10 mm
  • Dimension: 10mm
  • Dimension D: 10 mm
  • High voltage-resistant, insulated version: no
  • Length tolerance ±: 5 %
  • Material: Stainless steel 1.4571/1.4404
  • Material jacket: Without
  • Material property: Miscellaneous
  • Nomal ring (approx. m): 80
  • Normal ring (ca. kg): 50
  • Number of individual wires: 1

More info

▲
Cross-section78 mm²
Diameter10 mm
Dimension10mm
Dimension D10 mm
High voltage-resistant, insulated versionno
Length tolerance ±5 %
MaterialStainless steel 1.4571/1.4404
Material jacketWithout
Material propertyMiscellaneous
Nomal ring (approx. m)80
Normal ring (ca. kg)50
Number of individual wires1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
