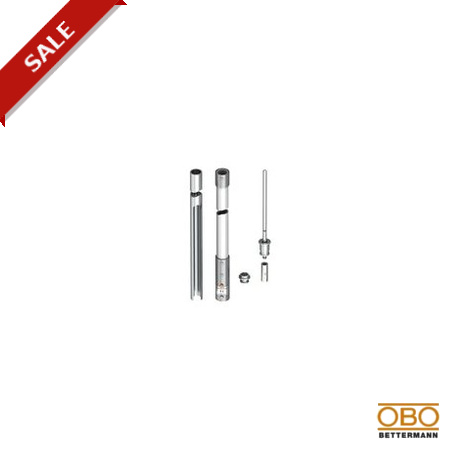

OBO BETTERMANN isFang IN-A 4000 isFang IN-A 4000 5408938 OBO BETTERMANN Insul. interception rod+outlet for isCon cable, internal, 4000mm, Fi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

isFang IN-A 4000 5408938 OBO BETTERMANN Insul. interception rod+outlet for isCon cable, internal, 4000mm, Fi..

isFang IN-A 4000

5408938

OBO BETTERMANN

1 Pcs.

Insul. interception rod+outlet for isCon cable, internal, 4000mm, Fibre-glass-reinforced plastic, GFK Insulated air-termination rod for inner-routed isCon conductor with side exit. • For installation of the OBO isCon® Pro+ conductor in the pipe• With side conductor outlet matching isFang air-termination rod stand with side outlet, type isFang 3B-A• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4• Inclusive connection element (type isCon IN connect) • Inclusive potential connection (type isCon In PAE)• Aluminium standpipe and air-termination tip• Centre section made of fibre-glass reinforced plastic (GRP)

Automation > Air-termination equipment for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate52,3867 kg CO2e / 1 Piece
ConnectionRound conductor
Diameter50 mm
Dimension4000mm
Dimension A1325 mm
Dimension B1000 mm
Dimension d min.50 mm
Dimension H1500 mm
Dimension L4000 mm
High voltage-resistant, insulated versionyes
Length4000 mm
MaterialFibre-glass-reinforced plastic
Version forAir-termination rod

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
