OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5408946
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

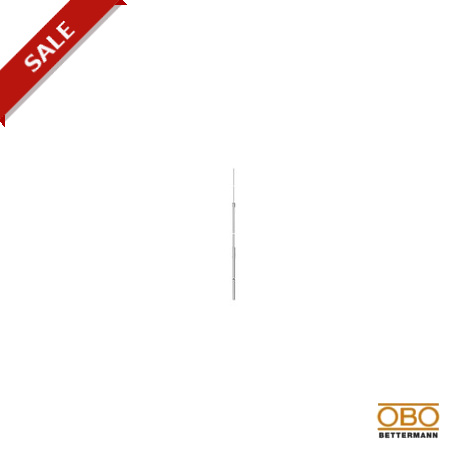

isFang 6000 5408946 OBO BETTERMANN Insulated interception rod , 6000mm, Light grey, Fibre-glass-reinforced p..
isFang 6000
5408946
OBO BETTERMANN
1 Pcs.
Insulated interception rod , 6000mm, Light grey, Fibre-glass-reinforced plastic, GFK
Insulated air-termination rod. • For isolated creation of air-termination systems• Suitable for isFang air-termination rod stand, type isFang 3B-100/150• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4• For installation on the building structure with isFang support • Fastening of the OBO isCon® conductor possible using accessories• Suitable for externally routed isCon® conductors• Stainless steel standpipe (V2A)• Centre section made of fibre-glass reinforced plastic (GRP)• Aluminium air-termination tip
Automation > Air-termination equipment for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Colour | Light grey |
|---|---|
| Connection | Round conductor |
| Diameter | 40 mm |
| Dimension | 6000mm |
| Dimension A | 3340 mm |
| Dimension B | 1000 mm |
| Dimension d min. | 40 mm |
|---|---|
| Dimension H | 1500 mm |
| High voltage-resistant, insulated version | yes |
| Length | 6000 mm |
| Material | Fibre-glass-reinforced plastic |
| Version for | Air-termination rod |
