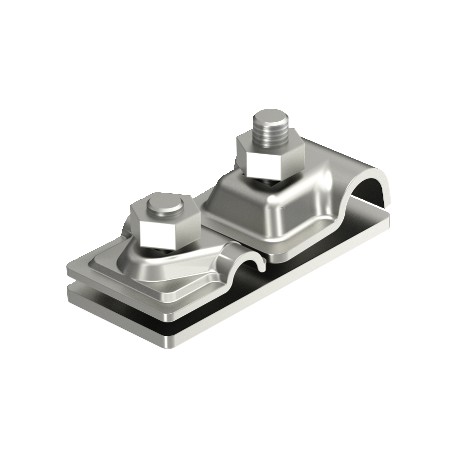

OBO BETTERMANN isCon AP1-16 VA isCon AP1-16 VA 5408026 OBO BETTERMANN Connection plate for one isCon cable, 16x8-10mm, Stainless steel, gra.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

isCon AP1-16 VA 5408026 OBO BETTERMANN Connection plate for one isCon cable, 16x8-10mm, Stainless steel, gra..

isCon AP1-16 VA

5408026

OBO BETTERMANN

1 Pcs.

Connection plate for one isCon cable, 16x8-10mm, Stainless steel, grade 304, VA, 1.4301 Connection plate for one isCon® cable. Connection plate to connect an isCon® conductor with air-termination rod Ø 16 mm, tested up to 150 kA (lightning protection class II)

Automation > Air-termination equipment for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann isCon AP1-16 VA connection plate facilitates secure transitions and electrical continuity for specialized down-conductor cables. Robust connection plates are vital in lightning protection networks to withstand high lightning current carrying capacities without failure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,7596 kg CO2e / 1 Piece
  • Connection: Round conductor
  • Dimension: 16x8-10mm
  • Dimension B: 40 mm
  • Dimension H: 45,5 mm
  • Fit: Rd 8-10 x Rd 16 mm
  • Length: 92 mm
  • Lightning current carrying capacity: H1/150 kA
  • Material: Stainless steel 1.4301

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,7596 kg CO2e / 1 Piece
ConnectionRound conductor
Dimension16x8-10mm
Dimension B40 mm
Dimension H45,5 mm
FitRd 8-10 x Rd 16 mm
Length92 mm
Lightning current carrying capacityH1/150 kA
MaterialStainless steel 1.4301
