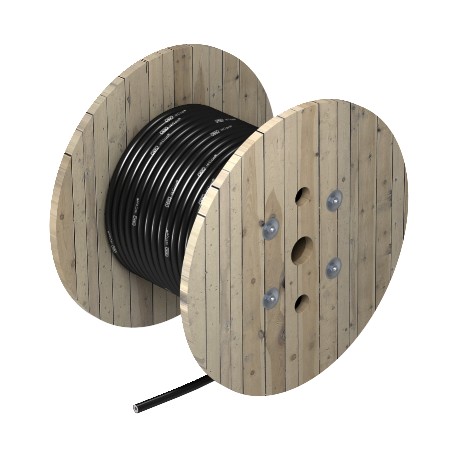

OBO BETTERMANN isCon Pro+ 75 SW isCon 750 SW 5408002 OBO BETTERMANN Insulated arrestor 25 m roll, ø 23mm, Black, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

isCon 750 SW 5408002 OBO BETTERMANN Insulated arrestor 25 m roll, ø 23mm, Black,

isCon Pro+ 75 SW

5408002

OBO BETTERMANN

25 m.

Insulated arrestor 25 m roll, ø 23mm, Black, isCon® conductor, Professional plus black. Please refer to the mounting instructions for information on routing the OBO isCon® conductor.• Highly voltage-resistant, insulated conductor• Floating discharge-free• Additional mechanical protection (black protective jacket)• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 (solid material)• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)• Halogen-free• Fire load 4.3 kWh/m• Can be used in potentially explosive areas Ex zone 1/2 and 21/22 when taking the current mounting instructions into account

Automation > Air-termination equipment for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann insulated arrestor (part number isCon Pro+ 75 SW) is a specialized high-voltage-resistant down-conductor used to maintain safe separation distances from internal metallic installations during lightning strikes. It prevents dangerous flashovers inside complex industrial buildings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour: Black
  • Cross-section: 35 mm²
  • Diameter: 23 mm
  • Dimension: Ø23mm
  • Equivalent separating distance s(e)/m (in air): 0,75
  • High voltage-resistant, insulated version: yes
  • Length tolerance ±: 5 %
  • Material jacket: EVA
  • Material property: Miscellaneous
  • Nomal ring (approx. m): 25
  • Number of individual wires: 7

More info

▲
ColourBlack
Cross-section35 mm²
Diameter23 mm
DimensionØ23mm
Equivalent separating distance s(e)/m (in air)0,75
High voltage-resistant, insulated versionyes
Length tolerance ±5 %
Material jacketEVA
Material propertyMiscellaneous
Nomal ring (approx. m)25
Number of individual wires7
