OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5407997
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

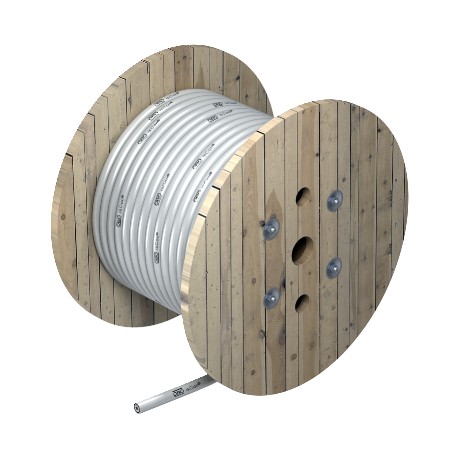

isCon 750 LGR 5407997 OBO BETTERMANN Insulated arrestor 100 m roll, ø 26mm, Light grey,
isCon Pro+ 75 GR
5407997
OBO BETTERMANN
100 m.
Insulated arrestor 100 m roll, ø 26mm, Light grey,
isCon® conductor, Professional plus light grey. Please refer to the mounting instructions for information on routing the OBO isCon® conductor.• Highly voltage-resistant, insulated conductor• Protection against contact voltage during rain (VDE 0432-1 (IEC/EN 60060-1)• Floating discharge-free• Additional mechanical protection (double protective jacket)• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 (solid material)• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)• Halogen-free• Fire load 5.1 kWh/m• Protection against contact voltage under sprinkling (VDE 0432-1 (IEC/EN 60060-1)• Can be used in potentially explosive are
Automation > Air-termination equipment for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Colour | Light grey |
|---|---|
| Cross-section | 35 mm² |
| Diameter | 26 mm |
| Dimension | Ø26mm |
| Equivalent separating distance s(e)/m (in air) | 0,75 |
| High voltage-resistant, insulated version | yes |
| Length tolerance ± | 5 % |
|---|---|
| Material jacket | EVA |
| Material property | Miscellaneous |
| Nomal ring (approx. m) | 100 |
| Number of individual wires | 7 |
