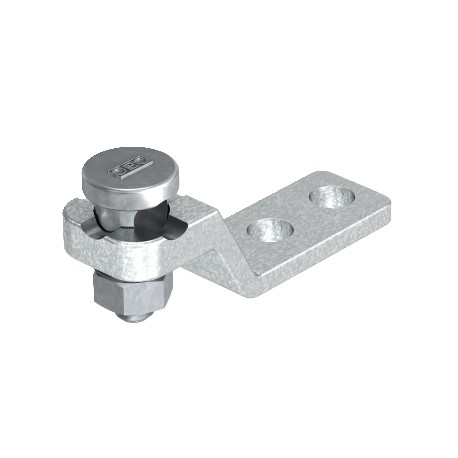

OBO BETTERMANN 5005 DIN-FT 5005 DIN-FT 5304601 OBO BETTERMANN Connection terminal with connecting strap, 8-10mm, Hot-dip galvanised, DI.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5005 DIN-FT 5304601 OBO BETTERMANN Connection terminal with connecting strap, 8-10mm, Hot-dip galvanised, DI..

5005 DIN-FT

5304601

OBO BETTERMANN

10 Pcs.

Connection terminal with connecting strap, 8-10mm, Hot-dip galvanised, DIN 267, Teil 10, Steel, St Connection and end piece, DIN version. • With 2 attaching holes and 1 fix contact clamping screw 5000…• With 2 attaching holes Ø 11 mm• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A connection terminal with connecting strap integrates a flexible tail element to bridge gaps between round conductors and fixed equipment or structural grounding points. This component streamlines complex routing requirements in industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,4656 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: cast steel
  • Suitable for connection: Miscellaneous
  • Surface: Hot galvanized
  • Type of connector: Connectors
  • Type of fastening screw: Clamping screw

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,4656 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
Materialcast steel
Suitable for connectionMiscellaneous
SurfaceHot galvanized
Type of connectorConnectors
Type of fastening screwClamping screw

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
