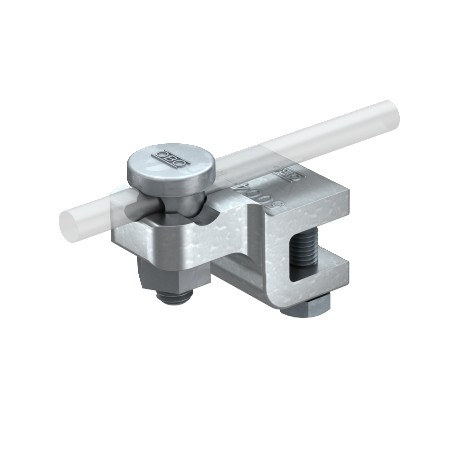

OBO BETTERMANN 5004 DIN-FT 12 5004 DIN-FT 12 5304407 OBO BETTERMANN Folding clamp fix contact, 12mm, Hot-dip galvanised, DIN EN ISO 1461, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5004 DIN-FT 12 5304407 OBO BETTERMANN Folding clamp fix contact, 12mm, Hot-dip galvanised, DIN EN ISO 1461, ..

5004 DIN-FT 12

5304407

OBO BETTERMANN

10 Pcs.

Folding clamp fix contact, 12mm, Hot-dip galvanised, DIN EN ISO 1461, Cast iron, TG Folding and construction clamp, 12 mm. • Flange thickness to 12 mm • With pre-mounted fix contact clamping screw 5000 • 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel • Terminal block made of malleable iron, hot galvanised• Mounting of the round conductors either vertical or transverse to structure• Corresponds to the requirements of DIN VDE 0185-305-3

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann 5004 DIN-FT 12 folding clamp fix contact is a specialized mechanical connector used in lightning protection and grounding installations to securely join conductors and maintain electrical continuity. This hardware component provides a reliable mechanical interface for routing and securing metal paths in industrial and commercial structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Clamping range, max.: 12 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5329 kg CO2e / 1 Piece
  • Dimension: 12mm
  • Dimension L: 55 mm
  • Dimension t: 20 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: N/50 kA
  • Material: cast steel
  • Suitable for connection: Miscellaneous
  • Surface: Hot-dip galvanised
  • Type of connector: Clamp connector
  • Type of fastening screw: Clamping screw

More info

▲
Clamping range, max.12 mm
CO2 Footprint (GWP) Cradle-to-Gate0,5329 kg CO2e / 1 Piece
Dimension12mm
Dimension L55 mm
Dimension t20 mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityN/50 kA
Materialcast steel
Suitable for connectionMiscellaneous
SurfaceHot-dip galvanised
Type of connectorClamp connector
Type of fastening screwClamping screw

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
