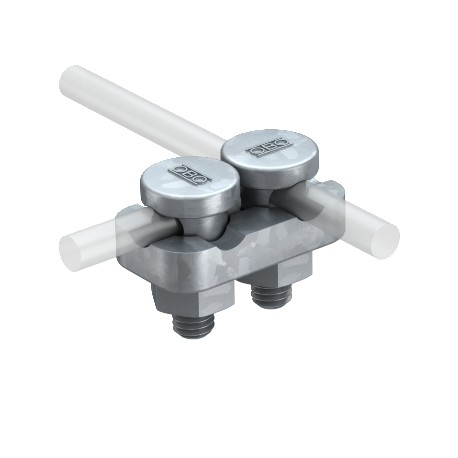

OBO BETTERMANN 5002 DIN-FT 5002 DIN-FT 5304202 OBO BETTERMANN Connection terminal for two round conductors, 8-10mm, Hot-dip galvanised,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5002 DIN-FT 5304202 OBO BETTERMANN Connection terminal for two round conductors, 8-10mm, Hot-dip galvanised,..

5002 DIN-FT

5304202

OBO BETTERMANN

20 Pcs.

Connection terminal for two round conductors, 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Connector Rd 8−10 mm, double. • With 2 fix contact clamping screws, nut and serrated washer• Including pre-mounted connecting pressure piece, die-cast zinc or copper-plated die-cast zinc• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A connection terminal for two round conductors joins parallel runs of cable in comprehensive grounding and lightning protection systems. This Obo Bettermann 5002 DIN-FT component ensures robust mechanical retention and low electrical resistance across joints. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,535 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Surface: Hot-dip galvanised
  • Type of connector: Connectors
  • Type of fastening screw: Clamping screw

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,535 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
SurfaceHot-dip galvanised
Type of connectorConnectors
Type of fastening screwClamping screw
