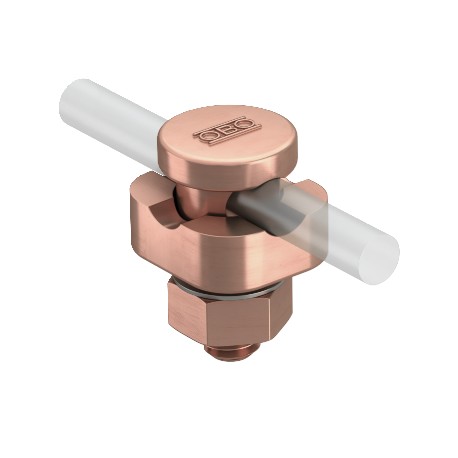

OBO BETTERMANN 5001 ZN-CU 5001 ZN-CU 5304113 OBO BETTERMANN Connection terminal for round cable, Copper-plated, Die-cast zinc, Zn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5001 ZN-CU 5304113 OBO BETTERMANN Connection terminal for round cable, Copper-plated, Die-cast zinc, Zn

5001 ZN-CU

5304113

OBO BETTERMANN

10 Pcs.

Connection terminal for round cable, Copper-plated, Die-cast zinc, Zn Connector Rd 8−10 mm, single, copper. • With Fix-Kontakt clamping screw, nut and serrated washer• With 10.2 mm drill hole• With pre-mounted thrust piece made of die-cast zinc• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann 5001 ZN-CU connection terminal for round cable provides a secure mechanical and electrical junction point for conductors in structural grounding installations. Installers rely on such terminals to bridge parallel or intersecting cable runs securely within high-integrity earthing networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0144 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Die-cast zinc
  • Suitable for connection: Miscellaneous
  • Surface: Copper-plated
  • Type of connector: Connectors
  • Type of fastening screw: Clamping screw

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0144 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialDie-cast zinc
Suitable for connectionMiscellaneous
SurfaceCopper-plated
Type of connectorConnectors
Type of fastening screwClamping screw
