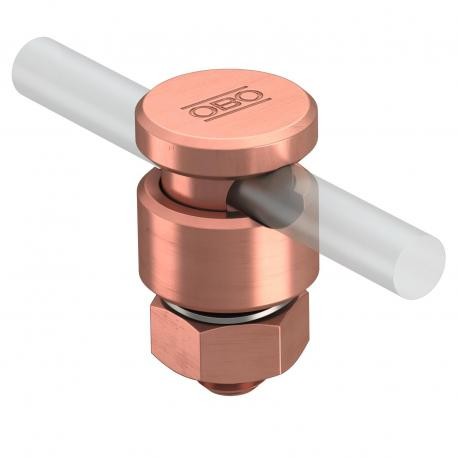

OBO BETTERMANN 5001 N-CU 5001 N-CU 5304172 OBO BETTERMANN Connection terminal for round cable, 8-10mm, Copper, Cu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5001 N-CU 5304172 OBO BETTERMANN Connection terminal for round cable, 8-10mm, Copper, Cu

5001 N-CU

5304172

OBO BETTERMANN

10 Pcs.

Connection terminal for round cable, 8-10mm, Copper, Cu Connector with staple 5001 N-CU, for round conductor 8-10mm Copper, Cu, Connector, Rd 8−10 mm with pressure trough Cu. • With 1 fix contact clamping screw, nut and serrated washer• Including pre-mounted pressure sump, steel• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,1186 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialCopper
Suitable for connectionMiscellaneous
Type of connectorConnectors
Type of fastening screwClamping screw
