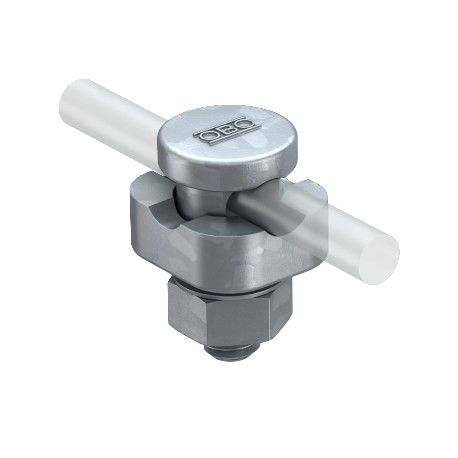

OBO BETTERMANN 5001 DIN-FT 5001 DIN-FT 5304105 OBO BETTERMANN Connection terminal for round cable, Hot-dip galvanised, DIN EN ISO 1461,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5001 DIN-FT 5304105 OBO BETTERMANN Connection terminal for round cable, Hot-dip galvanised, DIN EN ISO 1461,..

5001 DIN-FT

5304105

OBO BETTERMANN

20 Pcs.

Connection terminal for round cable, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Connector Rd 8−10 mm, single. • With Fix-Kontakt clamping screw, nut and serrated washer• With 10.2 mm drill hole• With pre-mounted thrust piece made of die-cast zinc• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Connection terminals for round cable are essential components in lightning protection infrastructure, securing individual conductor runs to maintain an unbroken path to ground. This Obo Bettermann 5001 DIN-FT part delivers dependable clamping force. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2762 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10 mm
  • Height: 25 mm
  • Intermediate plate: no
  • Length: 38 mm
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Miscellaneous
  • Surface: Hot-dip galvanised
  • Type of connector: Connectors
  • Type of fastening screw: Clamping screw
  • Width: 28 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,2762 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10 mm
Height25 mm
Intermediate plateno
Length38 mm
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionMiscellaneous
SurfaceHot-dip galvanised
Type of connectorConnectors
Type of fastening screwClamping screw
Width28 mm
