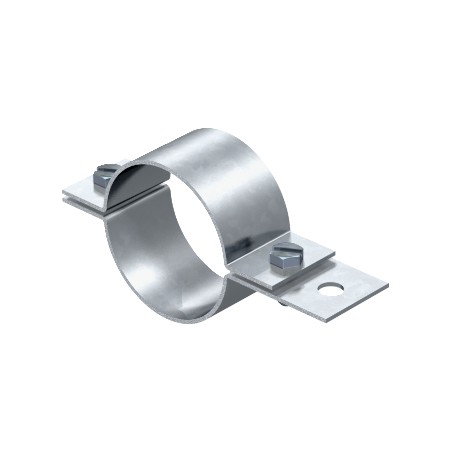

303 DIN-3 5102235 OBO BETTERMANN Pipe clamp , 3", Hot-dip galvanised, DIN EN ISO 1461, Steel, St
303 DIN-3
5102235
OBO BETTERMANN
10 Pcs.
Pipe clamp , 3", Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Pipe clamp. • DIN 48818, Form D• With Ø 11 mm mounting hole• 2 hexagonal bolts M8 x 20 (4 inch = M10)• 2 hex-head nuts M8 (4 inch = M10)
Automation > Tube earthing clamp for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A pipe clamp provides rigid mechanical support for heavy industrial conduits, process piping, and utility lines. This Obo Bettermann 303 DIN-3 assembly ensures secure attachment to structural building supports. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bimetal connector: no
- Clamping range, min.: 88,9 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 0,8677 kg CO2e / 1 Piece
- Connection hole: 11 mm
- Dimension: 3"
- Dimension d min.: 88,9 mm
- explosion-proof: no
- for pipe: 3
- Integrated round conductor guide: no
- Material: Steel
- Surface: Hot-dip galvanised
More info
▲| Bimetal connector | no |
|---|---|
| Clamping range, min. | 88,9 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8677 kg CO2e / 1 Piece |
| Connection hole | 11 mm |
| Dimension | 3" |
| Dimension d min. | 88,9 mm |
| explosion-proof | no |
|---|---|
| for pipe | 3 |
| Integrated round conductor guide | no |
| Material | Steel |
| Surface | Hot-dip galvanised |
