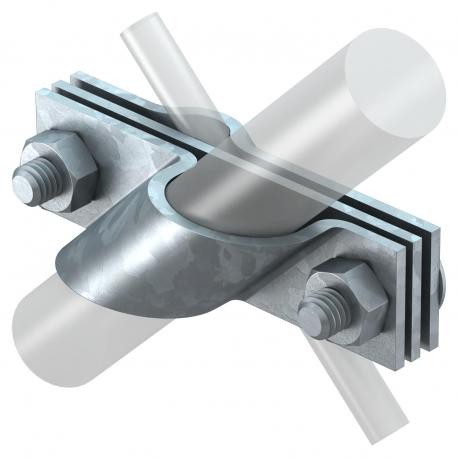

OBO BETTERMANN 2760 25 FT 2760 25 FT 5001668 OBO BETTERMANN Attaching clamp for round and flat cable, 25mm, Hot-dip galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2760 25 FT 5001668 OBO BETTERMANN Attaching clamp for round and flat cable, 25mm, Hot-dip galvanised, DIN EN..

2760 25 FT

5001668

OBO BETTERMANN

5 Pcs.

Attaching clamp for round and flat cable, 25mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Connection clamp for earth rod, universal FT. • Suitable for attaching round conductors Rd 8-10 or flat conductors to FL 40• With separator plate• Installed with 2 hexagonal bolts M10 x 30 and 2 hexagonal nuts M10

Automation > Connection clamp for earth rods
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Clamping range, max.10 mm
Clamping range, min.8 mm
CO2 Footprint (GWP) Cradle-to-Gate0,7639 kg CO2e / 1 Piece
Dimension25mm
Dimension A110 mm
Earthing connection diameter25 mm
FitRd 8-10/FL40 mm
for earth rods25 mm
Intermediate plateyes
MaterialSteel
Short-circuit current (50 HZ)(1 s;≤300°C)8,5 kA
Suitable for round conductor diameters, max.10 mm
Suitable for round conductor diameters, min.8 mm
SurfaceHot-dip galvanised
TypeConnection clip
