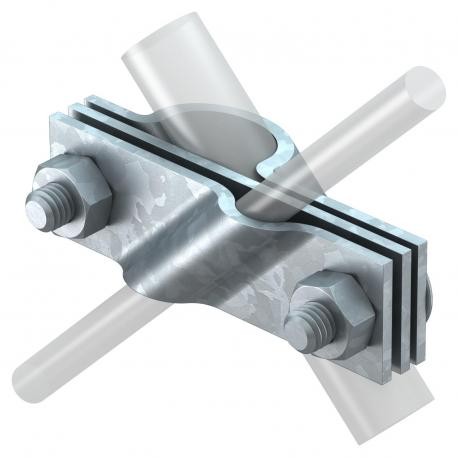

2760 20 FT 5001641 OBO BETTERMANN Attaching clamp for round and flat cable, 20mm, Hot-dip galvanised, DIN EN..
2760 20 FT
5001641
OBO BETTERMANN
5 Pcs.
Automation > Connection clamp for earth rods
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann attaching clamp for round and flat cable, part 2760 20 FT, secures grounding conductors firmly to earth rods and structural elements. These robust connection hardware items ensure solid, low-resistance mechanical and electrical joints across outdoor lightning protection systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Clamping range, max.: 10 mm
- Clamping range, min.: 8 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 0,7017 kg CO2e / 1 Piece
- Dimension: 20mm
- Dimension A: 101 mm
- Earthing connection diameter: 20 mm
- Fit: Rd 8-10/FL40 mm
- for earth rods: 20 mm
- Intermediate plate: yes
- Material: Steel
- Short-circuit current (50 HZ)(1 s;≤300°C): 7,9 kA
- Suitable for round conductor diameters, max.: 10 mm
- Suitable for round conductor diameters, min.: 8 mm
- Surface: Hot-dip galvanised
- Type: Connection clip
More info
▲| Clamping range, max. | 10 mm |
|---|---|
| Clamping range, min. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7017 kg CO2e / 1 Piece |
| Dimension | 20mm |
| Dimension A | 101 mm |
| Earthing connection diameter | 20 mm |
| Fit | Rd 8-10/FL40 mm |
| for earth rods | 20 mm |
| Intermediate plate | yes |
|---|---|
| Material | Steel |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 7,9 kA |
| Suitable for round conductor diameters, max. | 10 mm |
| Suitable for round conductor diameters, min. | 8 mm |
| Surface | Hot-dip galvanised |
| Type | Connection clip |
