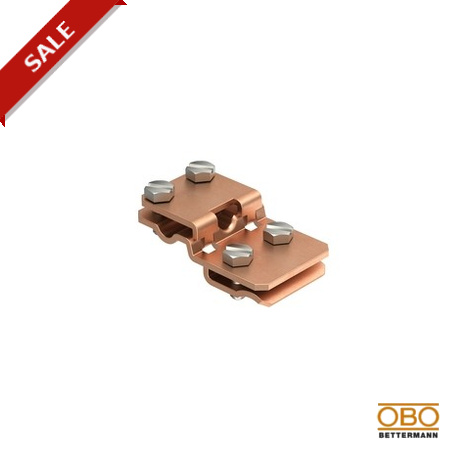

OBO BETTERMANN 274 CU 274 CU 5317479 OBO BETTERMANN Folding clamp , 8/10mm, Copper, Cu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

274 CU 5317479 OBO BETTERMANN Folding clamp , 8/10mm, Copper, Cu

274 CU

5317479

OBO BETTERMANN

10 Pcs.

Folding clamp , 8/10mm, Copper, Cu Folding clamp and connection terminal up to 5 mm Cu plate thickness. • Plate thickness to 5 mm• For cable routing along and across the plate• 4 hexagonal bolts M6 x 16• Meets the requirements of VDE 0185-305 (IEC 62305)

Automation > Connection clamp for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured in copper, the Obo Bettermann 274 CU folding clamp provides a reliable connection point for grounding leads.

Folding clamps are standard hardware items utilized to create dependable electrical junctions across lightning protection networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Clamping range, max.: 5 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,4992 kg CO2e / 1 Piece
  • Dimension: 8mm
  • Fit: Rd 8 mm
  • Lightning current carrying capacity: N/50 kA
  • Material: Copper
  • Type of connector: Folding clamp
  • Type of fastening screw: Hexagonal bolt

More info

▲
Clamping range, max.5 mm
CO2 Footprint (GWP) Cradle-to-Gate0,4992 kg CO2e / 1 Piece
Dimension8mm
FitRd 8 mm
Lightning current carrying capacityN/50 kA
MaterialCopper
Type of connectorFolding clamp
Type of fastening screwHexagonal bolt

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
