OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5318149
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

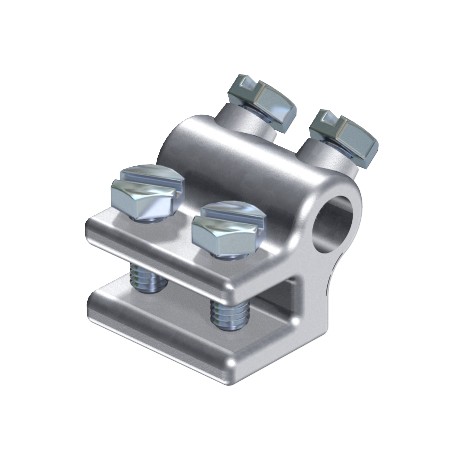

272 14 5318149 OBO BETTERMANN Terminal , 14mm, Hot-dip galvanised, DIN EN ISO 1461, Cast iron, TG
272 14
5318149
OBO BETTERMANN
20 Pcs.
Terminal , 14mm, Hot-dip galvanised, DIN EN ISO 1461, Cast iron, TG
Connection terminal to 14 mm. • Flange thickness to 8 and/or 14 mm• With 4 hexagonal bolts M8• Conforms to the requirements according to DIN V VDE V 0185-3, Section 4.5
Connectors > Connector for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Clamping range, max. | 14 mm |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4819 kg CO2e / 1 Piece |
| Dimension | 14mm |
| Fit | Rd 8-10 mm |
| Intermediate plate | no |
| Lightning current carrying capacity | N/50 kA |
| Material | cast steel |
|---|---|
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Surface | Hot-dip galvanised |
| Type of connector | Connection terminal |
| Type of fastening screw | Hexagonal bolt |
