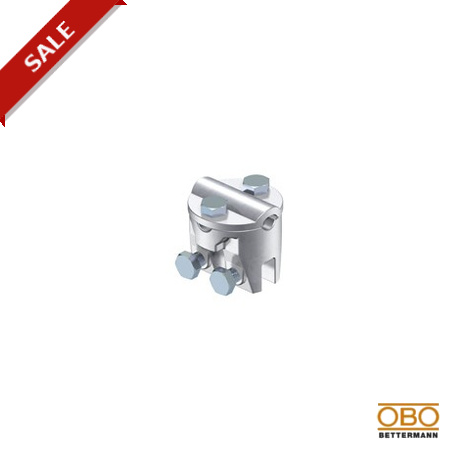

269 8-10 5317010 OBO BETTERMANN Folding clamp , 8/10mm, Electrogalvanised, DIN 50961, Die-cast zinc, Zn
269 8-10
5317010
OBO BETTERMANN
20 Pcs.
Automation > Connection clamp for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Obo Bettermann, the 269 8-10 folding clamp secures parallel or intersecting conductors in lightning protection systems.
Folding clamps provide reliable clamping pressure to maintain continuous electrical paths across outdoor installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Clamping range, max.: 7 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 0,6686 kg CO2e / 1 Piece
- Dimension: 8/10mm
- Fit: Rd 8-10 mm
- Lightning current carrying capacity: N/50 kA
- Material: Die-cast zinc
- Surface: Electrogalvanized
- Type of connector: Folding clamp
- Type of fastening screw: Hexagonal bolt
More info
▲| Clamping range, max. | 7 mm |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6686 kg CO2e / 1 Piece |
| Dimension | 8/10mm |
| Fit | Rd 8-10 mm |
| Lightning current carrying capacity | N/50 kA |
| Material | Die-cast zinc |
|---|---|
| Surface | Electrogalvanized |
| Type of connector | Folding clamp |
| Type of fastening screw | Hexagonal bolt |
