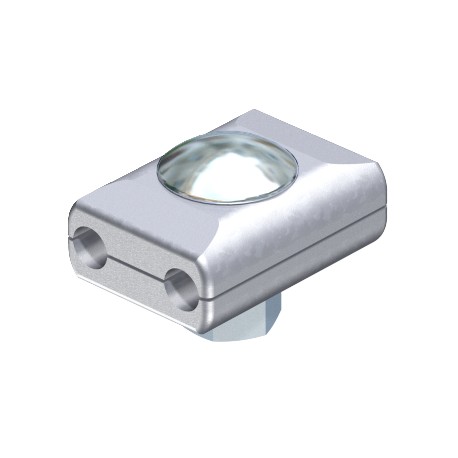

OBO BETTERMANN 260 8 260 8 5315700 OBO BETTERMANN Parallel connector , 8x8mm, Electrogalvanised, DIN 50961, Die-cast zinc, Zn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

260 8 5315700 OBO BETTERMANN Parallel connector , 8x8mm, Electrogalvanised, DIN 50961, Die-cast zinc, Zn

260 8

5315700

OBO BETTERMANN

50 Pcs.

Parallel connector , 8x8mm, Electrogalvanised, DIN 50961, Die-cast zinc, Zn Parallel connector Rd 8 mm, M10 x 30. • With flat, round bolt M10 x 30 and hexagonal nut, hot-dip galvanised steel

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann 260 8 parallel connector establishes secure mechanical and electrical bridging between matched round conductors in lightning protection networks. Engineers specify parallel clamps to maintain low contact resistance at crossover points throughout grounding grids.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5314 kg CO2e / 1 Piece
  • Dimension: 8x8mm
  • Fit: Rd 8 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Die-cast zinc
  • Round conductor diameter, conductor 1, max.: 8 mm
  • Round conductor diameter, conductor 1, min.: 8 mm
  • Round conductor diameter, conductor 2, max.: 8 mm
  • Round conductor diameter, conductor 2, min.: 8 mm
  • Suitable for connection: Round conductor Rd 8 / Rd 8
  • Surface: Electrogalvanized
  • Type of connector: Parallel connector
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,5314 kg CO2e / 1 Piece
Dimension8x8mm
FitRd 8 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialDie-cast zinc
Round conductor diameter, conductor 1, max.8 mm
Round conductor diameter, conductor 1, min.8 mm
Round conductor diameter, conductor 2, max.8 mm
Round conductor diameter, conductor 2, min.8 mm
Suitable for connectionRound conductor Rd 8 / Rd 8
SurfaceElectrogalvanized
Type of connectorParallel connector
Type of fastening screwHexagonal bolt
