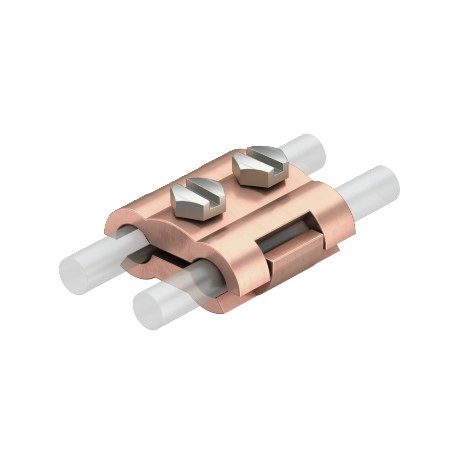

OBO BETTERMANN 260 8-10 MS 260 8-10 MS 5315654 OBO BETTERMANN Parallel connector , 8/8mm, Copper-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

260 8-10 MS 5315654 OBO BETTERMANN Parallel connector , 8/8mm, Copper-plated, Brass, CuZn

260 8-10 MS

5315654

OBO BETTERMANN

50 Pcs.

Parallel connector , 8/8mm, Copper-plated, Brass, CuZn Parallel connector Rd 6−10 mm, M6 x 20. • With 2 hexagonal bolts M6 x 20 made of stainless steel (V2A)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a dependable junction element, the Obo Bettermann 260 8-10 MS parallel connector joins adjacent parallel conductors in overhead and buried grounding setups. Parallel connectors maintain low-resistance pathways across complex earthing grids to prevent dangerous potential gradients.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0666 kg CO2e / 1 Piece
  • Dimension: 8/8mm
  • Fit: Rd 6-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: N/50 kA
  • Material: Brass
  • Round conductor diameter, conductor 1, max.: 10 mm
  • Round conductor diameter, conductor 1, min.: 6 mm
  • Round conductor diameter, conductor 2, max.: 10 mm
  • Round conductor diameter, conductor 2, min.: 6 mm
  • Suitable for connection: Round conductor Rd 6–10 / Rd 6–10
  • Surface: Copper-plated
  • Type of connector: Parallel connector
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0666 kg CO2e / 1 Piece
Dimension8/8mm
FitRd 6-10 mm
Intermediate plateno
Lightning current carrying capacityN/50 kA
MaterialBrass
Round conductor diameter, conductor 1, max.10 mm
Round conductor diameter, conductor 1, min.6 mm
Round conductor diameter, conductor 2, max.10 mm
Round conductor diameter, conductor 2, min.6 mm
Suitable for connectionRound conductor Rd 6–10 / Rd 6–10
SurfaceCopper-plated
Type of connectorParallel connector
Type of fastening screwHexagonal bolt
