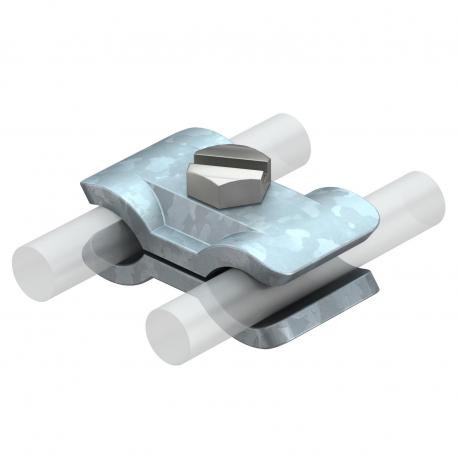

OBO BETTERMANN 259 A FT 259 A FT 5315514 OBO BETTERMANN Parallel clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

259 A FT 5315514 OBO BETTERMANN Parallel clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St

259 A FT

5315514

OBO BETTERMANN

25 Pcs.

Parallel clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St Parallel terminal block 259 A FT, 10-20mm Steel, St, Hot-dip galvanized, DIN EN ISO 1461 Parallel clamp for the connecting of reinforcing steels FT. • For connecting reinforced steels Ø 10−20 mm• Mounted with M10 x 40 bolts

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Parallel clamp assemblies such as the Obo Bettermann 259 A FT secure parallel conductor runs together within heavy-duty earthing and lightning protection networks. These robust mechanical fasteners ensure continuous electrical contact across extended cable runs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Type of fastening screws (EF000609): Hexagon screw

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,4447 kg CO2e / 1 Piece
Dimension10-20mm
Dimension A35 mm
Dimension B62 mm
FitØ 10-20 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionMiscellaneous
SurfaceHot-dip galvanised
Type of connectorParallel connector
Type of fastening screwHexagonal bolt

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
