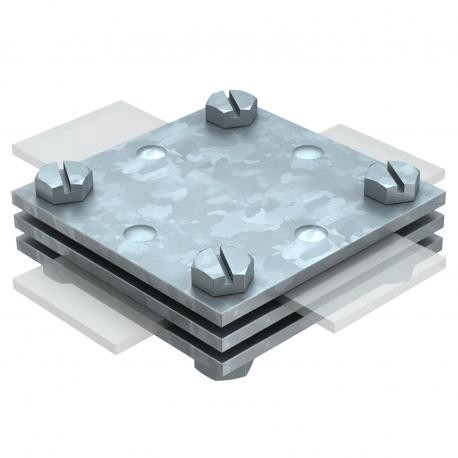

OBO BETTERMANN 256 DIN 40 FT 256 DIN 40 FT 5314623 OBO BETTERMANN Cross-connectors , 40mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

256 DIN 40 FT 5314623 OBO BETTERMANN Cross-connectors , 40mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St

256 DIN 40 FT

5314623

OBO BETTERMANN

10 Pcs.

Cross-connectors , 40mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St DIN cross-connector for flat conductor, with intermediate plate. • Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)• Fit: Max. FL 30 x FL 30 or max. FL 40 x FL 40• With adapter plate• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cross-connector is a foundational hardware fitting used to link perpendicular flat conductors within structural lightning protection and grounding grids. It ensures a mechanically secure and electrically sound intersection point for heavy flat-bar networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,0587 kg CO2e / 1 Piece
  • Dimension: 40mm
  • Dimension A: 80 mm
  • Dimension B: 80 mm
  • Fit: max. FL40 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Flat conductor Fl 40 / Fl 40
  • Surface: Hot-dip galvanised
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,0587 kg CO2e / 1 Piece
Dimension40mm
Dimension A80 mm
Dimension B80 mm
Fitmax. FL40 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionFlat conductor Fl 40 / Fl 40
SurfaceHot-dip galvanised
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt
