256 A-DIN 40 FT 5314666 OBO BETTERMANN Cross-connectors no separator plate, 40mm, Hot-dip galvanised, DIN EN..
256 A-DIN 40 FT
5314666
OBO BETTERMANN
10 Pcs.
Connectors > Connector for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

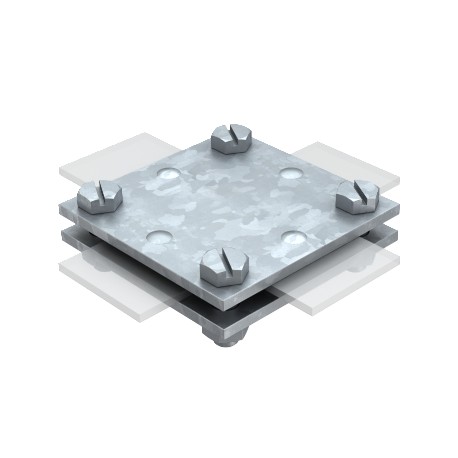

A cross-connector without separator plate securely bridges flat conductors at right angles within structural earthing and lightning protection arrangements. It provides a tight, high-integrity mechanical clamp that facilitates continuous current flow through intersecting busbars or tapes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,8295 kg CO2e / 1 Piece
- Dimension: 40mm
- Dimension A: 80 mm
- Dimension B: 80 mm
- Fit: max. FL40 mm
- Intermediate plate: no
- Lightning current carrying capacity: H/100 kA
- Material: Steel
- Suitable for connection: Flat conductor Fl 40 / Fl 40
- Surface: Hot-dip galvanised
- Type of connector: Cross-connectors
- Type of fastening screw: Hexagonal bolt
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,8295 kg CO2e / 1 Piece |
|---|---|
| Dimension | 40mm |
| Dimension A | 80 mm |
| Dimension B | 80 mm |
| Fit | max. FL40 mm |
| Intermediate plate | no |
| Lightning current carrying capacity | H/100 kA |
|---|---|
| Material | Steel |
| Suitable for connection | Flat conductor Fl 40 / Fl 40 |
| Surface | Hot-dip galvanised |
| Type of connector | Cross-connectors |
| Type of fastening screw | Hexagonal bolt |
