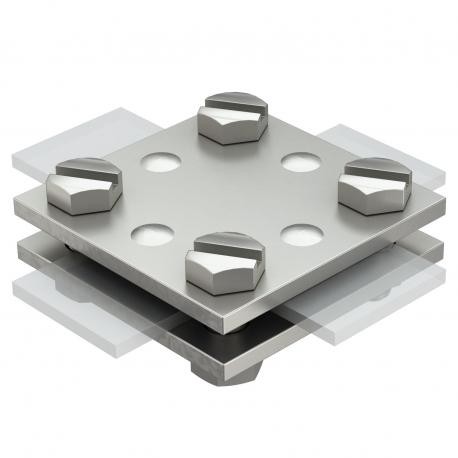

OBO BETTERMANN 256 A-DIN 30 V4A 256 A-DIN 30 V4A 5314659 OBO BETTERMANN Cross-connectors no separator plate, 30mm, Stainless steel, grade 31.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

256 A-DIN 30 V4A 5314659 OBO BETTERMANN Cross-connectors no separator plate, 30mm, Stainless steel, grade 31..

256 A-DIN 30 V4A

5314659

OBO BETTERMANN

10 Pcs.

Cross-connectors no separator plate, 30mm, Stainless steel, grade 316 Ti, VA, 1.4571 DIN cross-connector for flat conductor A4. • Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)• Fit: Max. FL 30 x FL 30• Without adapter plate• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for flat conductor networks, the Obo Bettermann 256 A-DIN 30 V4A cross-connector joins strip conductors at right angles to form stable lightning protection grids. Stainless steel construction ensures long-term resistance to environmental corrosion. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,1874 kg CO2e / 1 Piece
  • Dimension: 30mm
  • Dimension A: 60 mm
  • Dimension B: 60 mm
  • Fit: max. FL30 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Stainless steel 1.4571
  • Suitable for connection: Flat conductor Fl 30 / Fl 30
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,1874 kg CO2e / 1 Piece
Dimension30mm
Dimension A60 mm
Dimension B60 mm
Fitmax. FL30 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4571
Suitable for connectionFlat conductor Fl 30 / Fl 30
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt
