OBO BETTERMANN 256 A-DIN 30 FT 256 A-DIN 30 FT 5314658 OBO BETTERMANN Cross-connectors no separator plate, 30mm, Hot-dip galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

256 A-DIN 30 FT 5314658 OBO BETTERMANN Cross-connectors no separator plate, 30mm, Hot-dip galvanised, DIN EN..

256 A-DIN 30 FT

5314658

OBO BETTERMANN

10 Pcs.

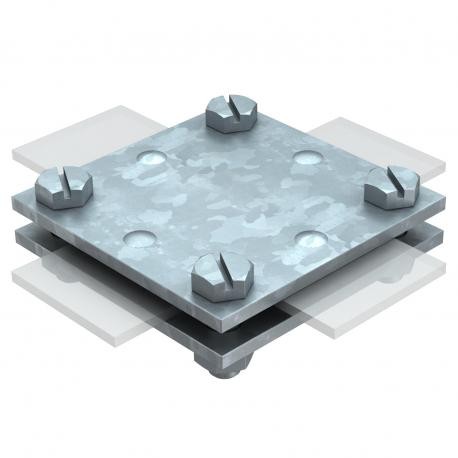

Cross-connectors no separator plate, 30mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cross connector 256 A-DIN 30 FT, without intermediate plate 30mm Steel, St, Hot dip galvanized, DIN EN ISO 1461 Cross DIN connector for flat conductors. • Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)• For: max. FL 30 x FL 30 or max. FL 40 x FL 40• Without middle plate• Mounted with 4 x M8 x 25 hex head screws and 4 x M8 hex nuts (F)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Cross-connectors no separator plate components like the Obo Bettermann 256 A-DIN 30 FT provide direct electrical bonding solutions for intersecting conductors in industrial lightning networks. These clamps join grid wires without internal partitions to streamline installation workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Type of fastening screws (EF000609): Hexagon screw

More info

▲
• Meets the requirements of VDE 0185-305-3 (IEC/ en 62305-3)
• Fit: Max. FL 30 x FL 30 or max. FL 40 x FL 40
• Without adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
