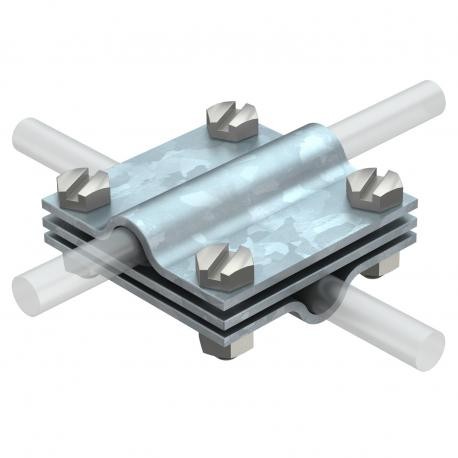

OBO BETTERMANN 254 DIN 8-10 FT 254 DIN 8-10 FT 5314038 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

254 DIN 8-10 FT 5314038 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel..

254 DIN 8-10 FT

5314038

OBO BETTERMANN

25 Pcs.

Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cross-connector with intermediate plate for Rd 8−10 mm FT. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• For round conductors, fit: Rd 8-10 x Rd 8-10• With adapter plate• Mounted with 4 hexagonal bolts M6 x 20 and 4 hexagonal nuts M6

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cross-connector joins perpendicular runs of round conductors in industrial lightning protection systems, ensuring secure mechanical and electrical interconnection across grid networks. This hardware distributes electrical stress evenly across intersecting paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,3541 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Dimension A: 52 mm
  • Dimension B: 52 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Surface: Hot-dip galvanised
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,3541 kg CO2e / 1 Piece
Dimension8-10mm
Dimension A52 mm
Dimension B52 mm
FitRd 8-10 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
SurfaceHot-dip galvanised
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt
