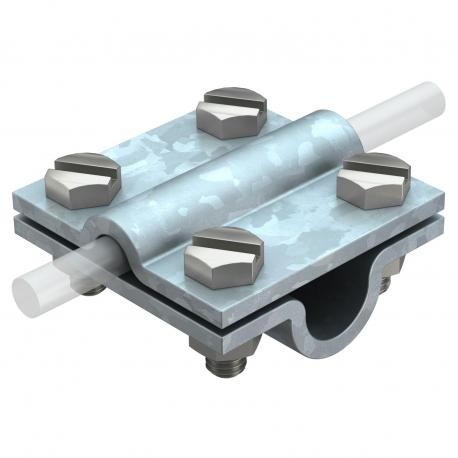

OBO BETTERMANN 253 10X16 253 10X16 5312809 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN 267, Teil 10, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

253 10X16 5312809 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN 267, Teil 10, Steel, St

253 10X16

5312809

OBO BETTERMANN

25 Pcs.

Cross-connectors , 8-10mm, Hot-dip galvanised, DIN 267, Teil 10, Steel, St Cross-connector for Rd 8−10 x Rd 16. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8-10 x Rd 16 / FL 30• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for secure right-angle conductor routing, the Obo Bettermann 253 10X16 cross-connector joins varying round conductor sizes within lightning protection systems. Such components guarantee structural integrity and low-impedance electrical contact at critical grid intersection points.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5427 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Dimension A: 60 mm
  • Dimension B: 60 mm
  • Fit: Rd 8-10 x 16 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Round conductor Rd 8-10 / Rd 16
  • Surface: Hot-dip galvanised
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,5427 kg CO2e / 1 Piece
Dimension8-10mm
Dimension A60 mm
Dimension B60 mm
FitRd 8-10 x 16 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionRound conductor Rd 8-10 / Rd 16
SurfaceHot-dip galvanised
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
