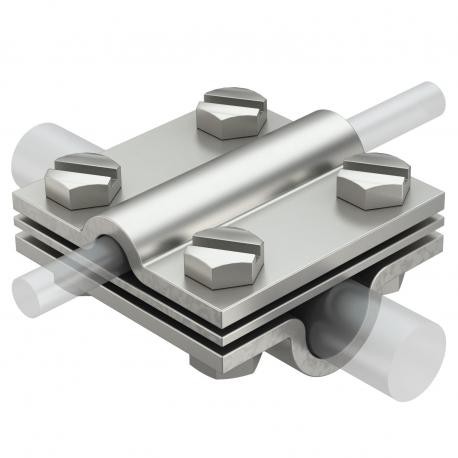

OBO BETTERMANN 252 8-10x16 V4A 252 8-10x16 V4A 5312346 OBO BETTERMANN Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

252 8-10x16 V4A 5312346 OBO BETTERMANN Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571

252 8-10x16 V4A

5312346

OBO BETTERMANN

10 Pcs.

Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571 Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8-10 x Rd 16 / FL 30• With adapter plate• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty crossover intersections, the Obo Bettermann 252 8-10x16 V4A cross-connector links perpendicular conductors in specialized earthing systems. Cross-connectors ensure solid electrical bonding at right-angle conductor intersections across industrial lightning protection layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,5643 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Dimension A: 60 mm
  • Dimension B: 60 mm
  • Fit: Rd 8-10 x 16 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Stainless steel 1.4571
  • Suitable for connection: Round conductor Rd 8-10 / Rd 16
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,5643 kg CO2e / 1 Piece
Dimension8-10mm
Dimension A60 mm
Dimension B60 mm
FitRd 8-10 x 16 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4571
Suitable for connectionRound conductor Rd 8-10 / Rd 16
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
