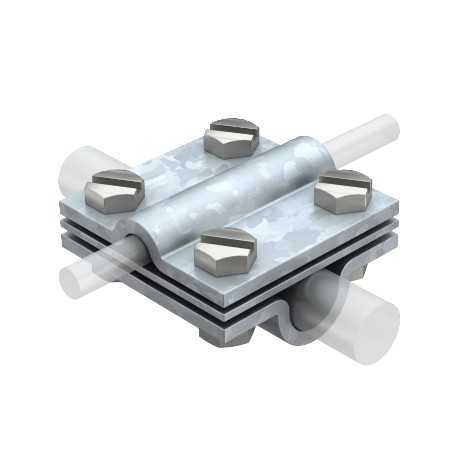

OBO BETTERMANN 252 8-10X16 FT 252 8-10X16 FT 5312345 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

252 8-10X16 FT 5312345 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel,..

252 8-10X16 FT

5312345

OBO BETTERMANN

25 Pcs.

Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8-10 x Rd 16 / FL 30• With adapter plate• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann 252 8-10X16 FT cross-connector is engineered to bridge intersecting conductors within heavy-duty earthing and lightning protection layouts. Parts of this category maintain reliable pathways for fault currents and transient surges in industrial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,6578 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Dimension A: 60 mm
  • Dimension B: 60 mm
  • Fit: Rd 8-10 x 16 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Round conductor Rd 8-10 / Rd 16
  • Surface: Hot-dip galvanised
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,6578 kg CO2e / 1 Piece
Dimension8-10mm
Dimension A60 mm
Dimension B60 mm
FitRd 8-10 x 16 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionRound conductor Rd 8-10 / Rd 16
SurfaceHot-dip galvanised
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt
