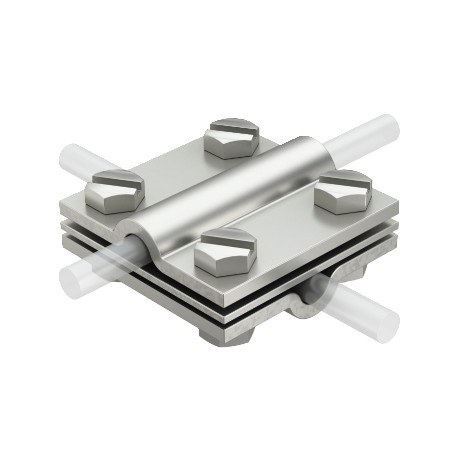

OBO BETTERMANN 252 8-10 V4A 252 8-10 V4A 5312318 OBO BETTERMANN Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

252 8-10 V4A 5312318 OBO BETTERMANN Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571

252 8-10 V4A

5312318

OBO BETTERMANN

10 Pcs.

Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571 Cross connector 252 8-10 V4A 8-10mm Stainless steel 1.4571, V4A, 1.4571 Cross-connector with intermediate plate for Rd 8−10 mm A4. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8-10 x Rd 8-10 / FL 30• With adapter plate• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A stainless steel cross-connector delivers superior mechanical strength and weather resistance when joining perpendicular round conductors in exposed lightning protection grids. It withstands harsh environmental elements while preserving secure electrical contact. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,4815 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Dimension A: 60 mm
  • Dimension B: 60 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Stainless steel 1.4571
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,4815 kg CO2e / 1 Piece
Dimension8-10mm
Dimension A60 mm
Dimension B60 mm
FitRd 8-10 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4571
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt
