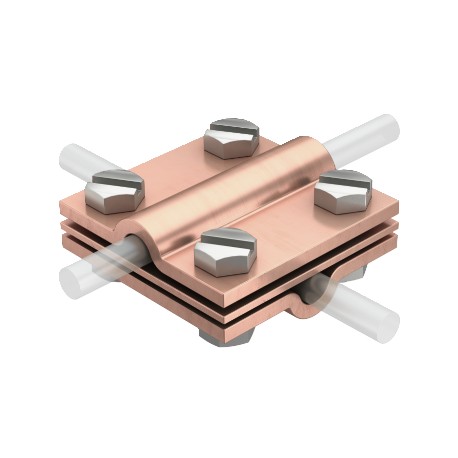

OBO BETTERMANN 252 8-10 CU 252 8-10 CU 5312418 OBO BETTERMANN Cross-connectors , 8-10mm, Copper, Cu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

252 8-10 CU 5312418 OBO BETTERMANN Cross-connectors , 8-10mm, Copper, Cu

252 8-10 CU

5312418

OBO BETTERMANN

10 Pcs.

Cross-connectors , 8-10mm, Copper, Cu Cross-connector with intermediate plate for Rd 8−10 mm Cu. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8–10 x Rd 8–10 / FL 30• With adapter plate• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 made of rust-proof stainless steel (A2)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A copper cross-connector provides an effective junction point for intersecting round conductors in grounding networks requiring high corrosion resistance and electrical conductivity. The fitting clamps structural elements tightly to maintain continuous fault current paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,1805 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Dimension A: 60 mm
  • Dimension B: 60 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Copper
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,1805 kg CO2e / 1 Piece
Dimension8-10mm
Dimension A60 mm
Dimension B60 mm
FitRd 8-10 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialCopper
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
