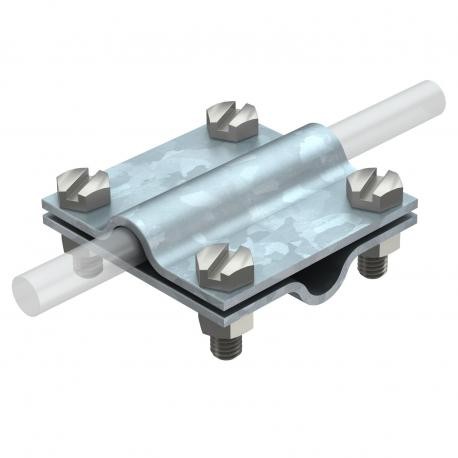

OBO BETTERMANN 251 8-10 251 8-10 5312035 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

251 8-10 5312035 OBO BETTERMANN Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St

251 8-10

5312035

OBO BETTERMANN

25 Pcs.

Cross-connectors , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cross-connector Rd 8−10 mm. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• For round conductors, fit: Rd 8-10 x Rd 8-10• With 4 hexagonal bolts M6 x 16 (VA)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Cross-connectors like the Obo Bettermann 251 8-10 model form reliable right-angle junctions between grounding conductors in lightning protection networks. They maintain secure contact pressure to handle heavy fault currents effectively. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,3098 kg CO2e / 1 Piece
  • Dimension: 52 mm
  • Dimension A: 52 mm
  • Dimension B: 52 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Surface: Hot-dip galvanised
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,3098 kg CO2e / 1 Piece
Dimension8-10mm
Dimension A52 mm
Dimension B52 mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialSteel
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
SurfaceHot-dip galvanised
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
