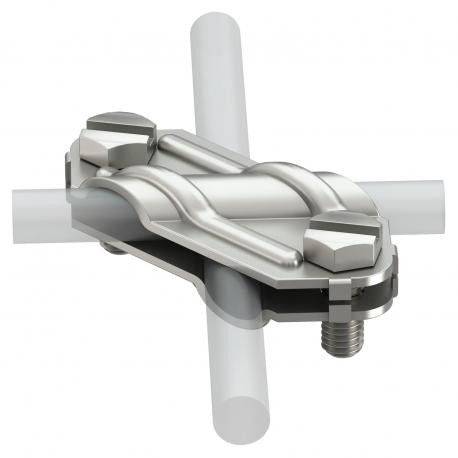

OBO BETTERMANN 250 V4A 250 V4A 5312925 OBO BETTERMANN Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

250 V4A 5312925 OBO BETTERMANN Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571

250 V4A

5312925

OBO BETTERMANN

10 Pcs.

Cross-connectors , 8-10mm, Stainless steel, grade 316 Ti, VA, 1.4571 Cross-connector for flat conductors and round conductors stainless steel. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8-10 x Rd 8-10• Fit: Rd 8-10 x FL 30• Fit: FL 30 x FL 30• Mounted with 2 hexagonal bolts M8 x 20

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cross-connector accommodates transitions between round and flat conductors in industrial lightning protection networks. It bridges differing profile shapes while maintaining dependable mechanical clamping strength under fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5213 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10/FL30 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Stainless steel 1.4571
  • Short-circuit current (50 HZ)(1 s;≤300°C): 1,4 kA
  • Suitable for connection: Round conductor Rd 8-10 / flat conductor Fl 30
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,5213 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10/FL30 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4571
Short-circuit current (50 HZ)(1 s;≤300°C)1,4 kA
Suitable for connectionRound conductor Rd 8-10 / flat conductor Fl 30
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt
