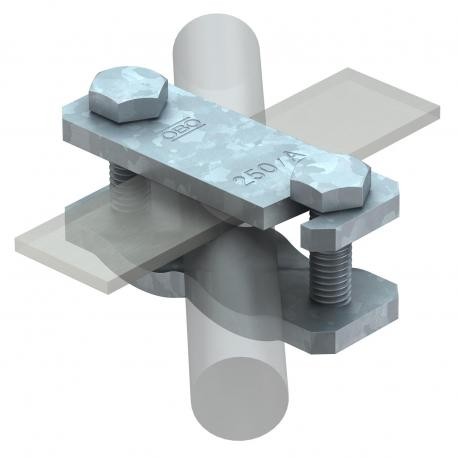

OBO BETTERMANN 250 AS-FT 250 AS-FT 5313031 OBO BETTERMANN Diagonal clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

250 AS-FT 5313031 OBO BETTERMANN Diagonal clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St

250 AS-FT

5313031

OBO BETTERMANN

25 Pcs.

Diagonal clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St Diagonal clamp for flat conductors and round conductors FT. • For reinforced steels Ø 6–22 mm and flat conductors 50 x 4• Mounted with bolts M10 x 40• Version ...-AS with bolts M10 x 30• Simple mounting through open slot

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann 250 AS-FT diagonal clamp serves as an adaptable connector in complex earthing and lightning protection architectures. Diagonal clamps join crossing or angular conductors to ensure continuous electrical paths throughout an installation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,6583 kg CO2e / 1 Piece
  • Dimension: 88x30x45
  • Dimension A: 30 mm
  • Dimension B: 88 mm
  • Dimension L: 20 mm
  • Fit: Rd 6-22/ max. FL50 mm
  • Flat conductor width, conductor 2, max.: 50
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Steel
  • Round conductor diameter, conductor 1, max.: 22 mm
  • Round conductor diameter, conductor 1, min.: 6 mm
  • Short-circuit current (50 HZ)(1 s;≤300°C): 7,3 kA
  • Suitable for connection: Miscellaneous
  • Surface: Hot-dip galvanised
  • Type of connector: Connectors

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,6583 kg CO2e / 1 Piece
Dimension88x30x45
Dimension A30 mm
Dimension B88 mm
Dimension L20 mm
FitRd 6-22/ max. FL50 mm
Flat conductor width, conductor 2, max.50
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialSteel
Round conductor diameter, conductor 1, max.22 mm
Round conductor diameter, conductor 1, min.6 mm
Short-circuit current (50 HZ)(1 s;≤300°C)7,3 kA
Suitable for connectionMiscellaneous
SurfaceHot-dip galvanised
Type of connectorConnectors
Type of fastening screwHexagonal bolt
